STATIONARIES & PARTS

OG / W SEAT

IMPERIAL SEAT - O-RING MOUNTED

PRODUCT INFORMATION

  • Imperial Housing Sizes
  • O-ring Mounted

O-ring mounted stationaries are preferred for their versatility in elastomer selection, as well as higher operating limits in housings with higher manufacturing tolerances.



For the OG and W seats, the o-ring is centrally contained within the seat section. The rear makes direct contact

with the base of the housing recess, providing better heat transfer and dissipation. Provision for an anti- rotation pin is included via a rear slot, intended for use in specialised or viscous fluid applications.

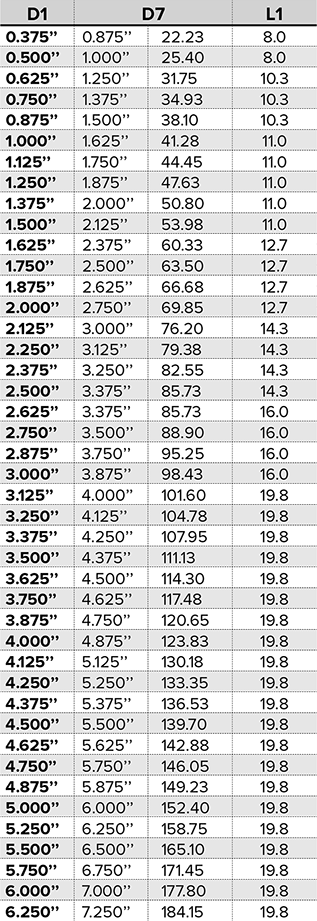

  • OG Seat

OG Seats suit imperial housing dimensions for the US market. It is commonly offered in higher-duty seals designed by US manufacturers e.g. Type 8-1 (H8U) and Type 8B1 (H8B). It is fully interchangeable with CM Seats

Equivalent: John Crane® OG, U.S. Seal® Type 3

  • W Seat

W Seats suit imperial housing dimensions for the UK / European market.

Equivalent: John Crane® W

  • Material Availability

Seal Face:



Elastomer:

Silicon Carbide (SiC)

Tungsten Carbide (TC)

Nitrile (N)

Viton (V)

EPDM (EP)

~Kalrez®, Teflex®, Aflas®

~special compounds available on request only

DATA SHEET

OG / W Seat - Data Sheet
