ALFA LAVAL® MECHANICAL SEALS

LKH-SS

  • LKH - Single Seal
  • OEM Replacement
  • Suits Alfa Laval® - LKH Pumps

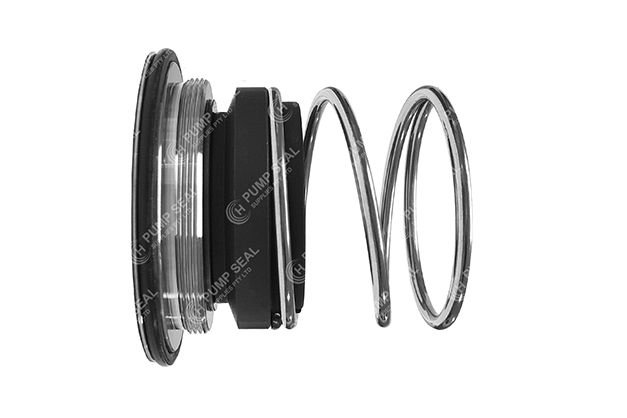

LKH-SS replaces the single mechanical seals found in Alfa Laval® LKH hygienic centrifugal pumps.



The seal is front-loaded, with spring compression distance pre-set once impeller is reinstalled. A pin in the drive ring (available separately) engages with a notch in the rotary face.



The left-hand threaded stationary is screwed into the backplate in an anti-clockwise direction and requires a special tool (not included). Rotate clockwise during disassembly.

PARTS

A

B

C

D

E

F

G

Stationary O-ring

Stationary Holder

Stationary Face / Ring

Rotary Face / Ring

Rotary O-ring

Rotary Spring

Rotary Drive Ring

EQUIVALENT

F-P07U-xxx1-0350

N-P07-xxx1-0350

Type 92 / 92B



N-P07U-E--S-0317-SL

N-P07-E--S-0350-SL

DATA SHEET

  • Material options

Rotary Face:

Stationary Face:

Elastomer:



Metal Parts:

CAB or SiC

(SiC)

EPDM standard

NBR, FPM or FEP on request

304S.S

(_) refers to shrink fitted

OEM names, brands, model or part numbers are used solely for reference. Our components are engineered to deliver performance and service life equivalent to or exceeding that of OEM parts when correctly installed and appropriately applied. Alfa Laval® is a registered trademark of its respective company. Pump Seal Supplies Pty Ltd are not representative of, nor affiliated with Alfa Laval®.

LKH - SINGLE SEAL

PRODUCT INFORMATION

DIMENSIONS

Dimensions refer to installed length, not 'free' length:

PUMP COMPATIBILITY

Replaces the single seals in Alfa Laval® pumps:



LKH & SolidC Ranges
