ALFA LAVAL® MECHANICAL SEALS

LKH-FSS

  • LKH - Flushed Seal
  • OEM Replacement
  • Suits Alfa Laval® - LKH Pumps

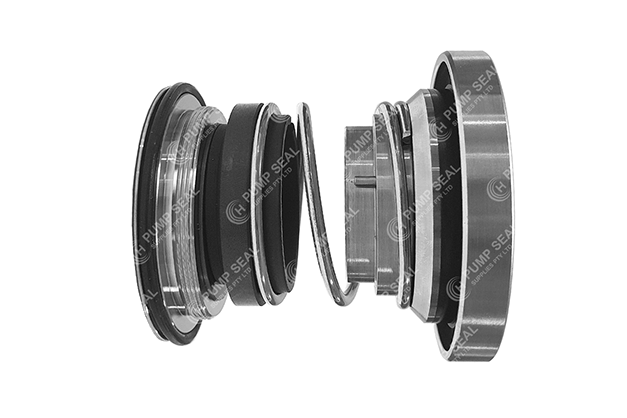

LKH-FSS replaces the flushed mechanical seals found in Alfa Laval® LKH hygienic centrifugal pumps.



The seal is front-loaded, with spring compression distance pre-set once impeller is reinstalled. A pin in the flush sleeve (available seperately) engages with a notch in the rotary face. A lip seal is installed on the outside of the ceramic-coated flush sleeve.



The left-hand threaded stationary is screwed into the backplate in an anti-clockwise direction and requires a special tool (not included). During disassembly, rotate clockwise.

PARTS

A

B

C

D

E

F

G

H

I

J

Stationary O-ring

Stationary Holder

Stationary Face / Ring

Rotary Face / Ring

Rotary O-ring

Rotary Spring

Rotary Flush Sleeve

Flush Sleeve Coating

Flush Sleeve O-ring

Flush Sleeve Lip Seal

EQUIVALENT

F-P07U-xxx1-0350

N-P07-xxx1-0350

Type 92C



N-P07U-O-YS-0350-SL

N-P07U-G-YS-0350-SL

N-P07-0-YS-0350-SL

N-P07---S-0350-LIP

DATA SHEET

LKH-FSS - Data Sheet
  • Material options

Rotary Face:

Stationary Face:

Elastomer:



Flush Sleeve:

Lip Seal:

Metal Parts:

CAB or SiC

(SiC)

EPDM standard

NBR, FPM or FEP on request

(CER) Coating/304SS

PTFE/304SS

304SS

(_) refers to shrink fitted

OEM names, brands, model or part numbers are used solely for reference. Our components are engineered to deliver performance and service life equivalent to or exceeding that of OEM parts when correctly installed and appropriately applied. Alfa Laval® is a registered trademark of its respective company. Pump Seal Supplies Pty Ltd are not representative of, nor affiliated with Alfa Laval®.

LKH - FLUSHED SEAL

PRODUCT INFORMATION

DIMENSIONS

Dimensions refer to installed length, not 'free' length:

PUMP COMPATIBILITY

Replaces the flushed seals (FSS) in Alfa Laval® pumps:



LKH & SolidC Ranges
