ALFA LAVAL® MECHANICAL SEALS

LKH-DMSS

  • LKH - Double Seal
  • OEM Replacement
  • Suits Alfa Laval® - LKH Pumps

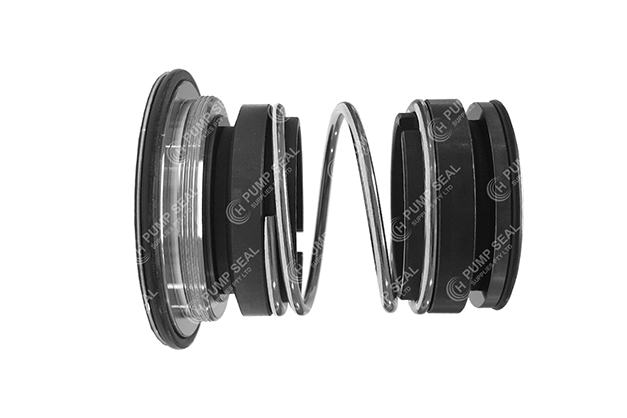

LKH-DMSS replaces the double mechanical seals found in Alfa Laval® LKH hygienic centrifugal pumps.



The seal is front-loaded, with spring compression distance pre-set once impeller is reinstalled. The middle drive ring (not included) engages with notches in both rotary faces.



The left-hand threaded stationary is screwed into the backplate in an anti-clockwise direction and requires a special tool (not included). During disassembly, rotate clockwise.

PARTS

A

B

C

D

E

F

G

H

I

J

K

Inb. Stationary O-ring

Inb. Stationary Holder

Inb. Stationary Face

Inb. Rotary Face

Inb. Rotary O-ring

Drive Ring (excluded)

Rotary Spring

Outb. Rotary O-ring

Outb. Rotary Face

Outb. Stationary Face

Outb. Stationary O-ring

EQUIVALENT

F-P07U-xxxxxx1-0350

N-P07-xxxxxx1-0350

Type 92D

DATA SHEET

LKH-DMSS

Data Sheet
  • Material options

Rotary Face:

Inboard Stationary:

Outboard Stationary:

Elastomers:



Metal Parts:

CAB or SiC

(SiC)

SiC

EPDM standard

NBR, FPM or FEP on request

304S.S

(_) refers to shrink fitted

OEM names, brands, model or part numbers are used solely for reference. Our components are engineered to deliver performance and service life equivalent to or exceeding that of OEM parts when correctly installed and appropriately applied. Alfa Laval® is a registered trademark of its respective company. Pump Seal Supplies Pty Ltd are not representative of, nor affiliated with Alfa Laval®.

LKH - DOUBLE SEAL

PRODUCT INFORMATION

DIMENSIONS

Dimensions refer to installed length, not 'free' length:

PUMP COMPATIBILITY

Replaces the double seals (DMSS) in Alfa Laval® pumps:



LKH Range
