VIKING® MECHANICAL SEALS

HVUA

  • OEM Replacement
  • Stuffing Box Component Seal
  • Anti-rotation provision
  • Suits Viking® Universal Line

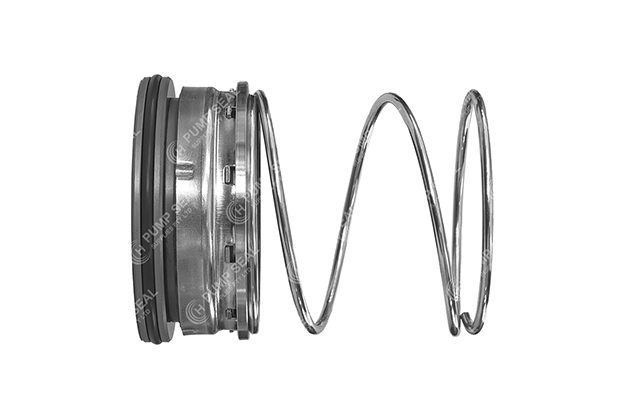

HVUA replaces the mechanical component seals fitted to the stuffing

box chamber in Viking® Universal Line, Internal Gear pumps.



The stationary or "Type 3 mating ring" is o-ring mounted and seals directly against the stuffing box. Unlike OEM, an additional slot is provided to the rear (except 2.4375'' size), allowing for anti-rotational pinning to the seal holder (1), allowing for a hard-face seal to be used.

PARTS

A

B

C

D

E

F

G

H

I

Stationary O-ring

Stationary Face / Ring

Rotary Face / Ring

Rotary Disk

Rotary Retainer

Rotary Diaphragm

Rotary Drive Band

Rotary Washer

Rotary Spring

EQUIVALENT

Type V4

DATA SHEET

  • Seal Installation

Reposition the existing setting collar

(6) so that that set screws (5) align with the seal access hole (3). Tighten set screws through access hole. Install the access hole pipe plug. Install the washer (4) and the HVUA seal, ensure the polished seal faces are mating. Bolt the seal holder (1) against the pump housing (2).

HVUA - Data Sheet
  • Material options

Rotary Face:

Stationary Face:

Elastomers:

Metal Parts:

CAB or SiC

SiC

Buna or Viton

304SS

OEM names, brands, model or part numbers are used solely for reference. Our components are engineered to deliver performance and service life equivalent to or exceeding that of OEM parts when correctly installed and appropriately applied. Viking® is a registered trademark of its respective company. Pump Seal Supplies Pty Ltd are not representative of, nor affiliated with Viking®.

UNIVERSAL - STUFFING BOX SEALS

PRODUCT INFORMATION

DIMENSIONS

Dimensions refer to installed length, not 'free' length:
