CONICAL-SPRING SEALS

HU2

  • O-ring, Conical-Spring Drive
  • Shaft Rotation Dependant
  • To DIN EN 12756 Standards

HU2 is designed to comply with DIN EN 12756, except in fitting length. It is based on the industry standard "Type 2" design, a conical spring-driven mechanical seal for metric shafts.



The spring provides both axial and rotational force being tightly wound in the direction of the rotating shaft.  Left or right-hand winding springs must be specified.



L1k can be achieved for sizes <32mm with either a spacer (Sp.), or longer "2K" spring. For sizes >32mm the "2K" spring is shorter.



An optional "U.C.L." seat is available with an extended tail and anti-rotation pin slot.



Additional non-standard options are available on request, including:

 - Shrink-fitted Rotary Face Suffix "H"

 - "2K" Spring to L1k Suffix "K"

 - "R2" Spring from HR2 Suffix "LRO2"

 - "2MC" Spring from HR2 Suffix "MC"

 - Open-cave "CA"

 - Driving Sleeve "U"

  • Operating conditions¹

PARTS

A

B

C

D

E

F

G

H

Stationary O-ring

Stationary Face / Ring

Rotary Seal Ring

Rotary O-ring

Rotary Conical Spring

Shrink-fitted Rotary Face

Open-cave washer

Spacer (optional)

SEAT OPTIONS

U.C.C.:

U.C.L.:

standard, no slot

extended tail w/ slot

EQUIVALENT

Uniten 2 range:

2, 2K, 2H, 2KH, 2 LRO2, 2MC

U2, U2H

T03D / T03DU

BT-RN.NU

42D / P42D

SR2

A3

RB351 / RB351S

RB352 / RB352S

DATA SHEET

HU2 - Data Sheet

Temperature:

Pressure:

Speed:

-30°C to +200°C

< 10 bar, 145 psi, 1 MPa

< 10m/s, 2000 fpm

rpm < 600000/(3.14 x D1)

¹Guide-values only (due to diversity of possible applications). Enquire for specific-use cases. Maximum values of each parameter cannot be applied together.

  • Material options

Rotary Face*:

Stationary Face*:

Elastomer:

Metal Parts:

304S.S.

CAB or SiC

N, V or EP

304S.S.

*Shrink-fitted SiC or TC options available on request

UNITEN 2

PRODUCT INFORMATION

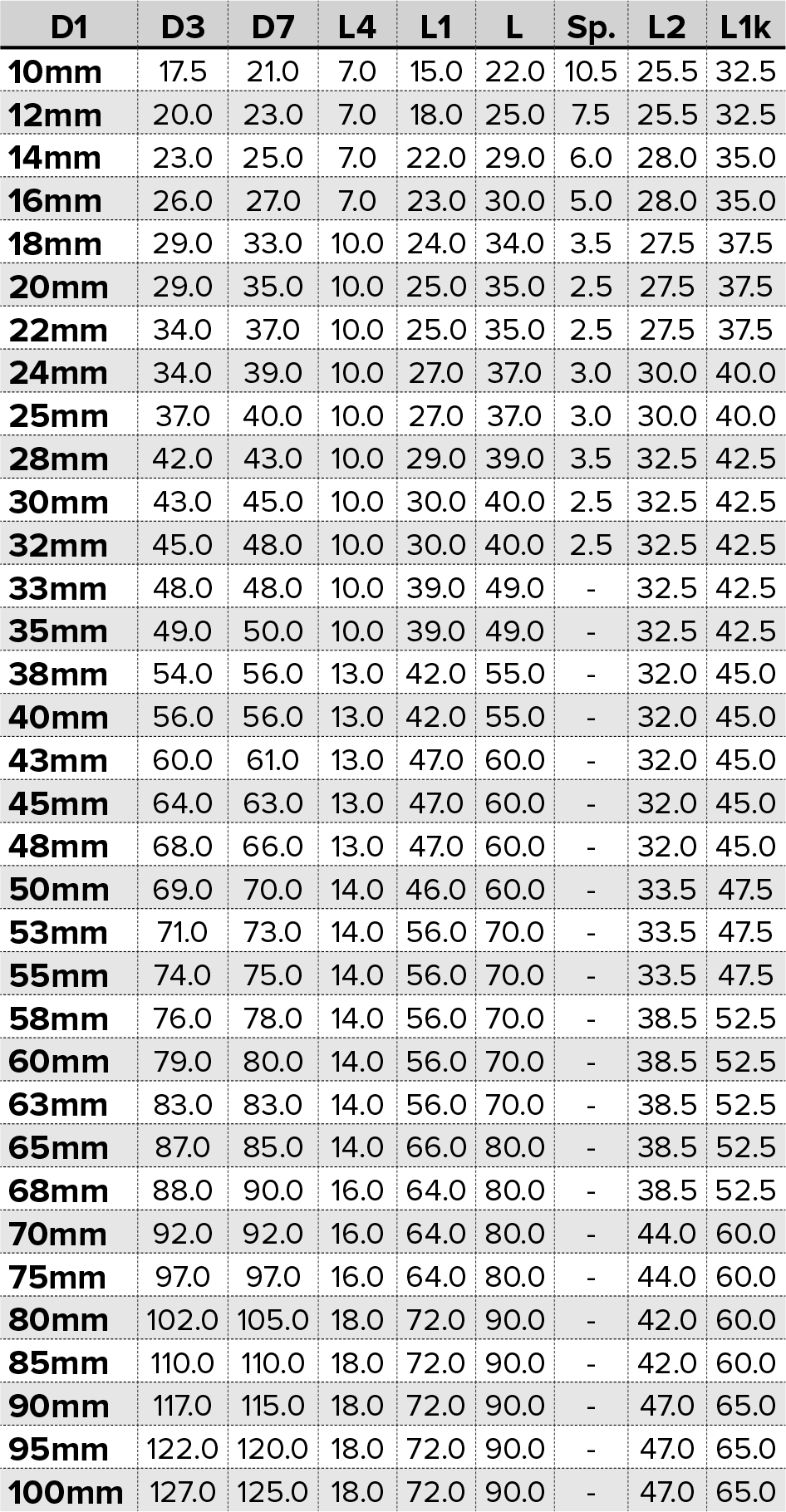

DIMENSIONS

Dimensions refer to installed length, not 'free' length:
