ABS® (SULZER®) MECHANICAL SEALS

HS3WS

  • Wave-Spring, O-ring Pusher
  • Suits ABS® / Sulzer® Pumps

PARTS

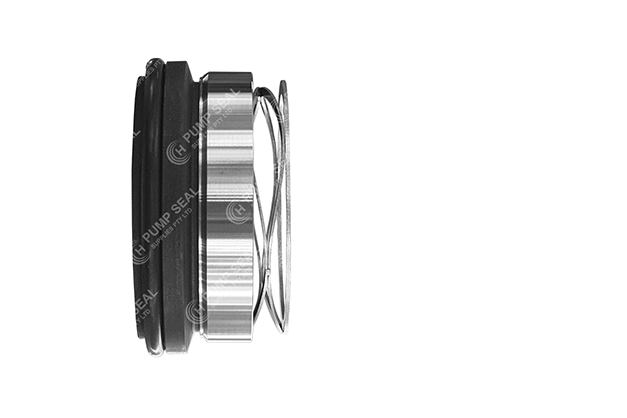

HS3WS is an o-ring wave-spring pusher seal typically replacing the upper position seal in Sulzer® (formerly ABS®) submersible pump ranges, including "AFP" and "XFP.



Typically used in conjunction with HGS/A seals in the lower position.

A

B

C

D

E

F

G

Stationary O-ring

Stationary Face / Ring

Rotary Face / Ring

Rotary O-ring

Rotary Washer

Rotary Wave-Spring

Rotary Washer

EQUIVALENT

  • Material options

Rotary Face:

Stationary Face:

Elastomer:

Metal Parts:

304SS

CAB

Viton®

304S.S.

Type 1632

W014 / W014U

DATA SHEET

HS3WS - Data Sheet

OEM names, brands, model or part numbers are used solely for reference. Our components are engineered to deliver performance and service life equivalent to or exceeding that of OEM parts when correctly installed and appropriately applied. ABS® Sulzer® is a registered trademark of its respective company. Pump Seal Supplies Pty Ltd are not representative of, nor affiliated with ABS® Sulzer®.

ABS® SULZER® - WAVE-SPRING

PRODUCT INFORMATION

DIMENSIONS

Dimensions refer to installed length, not 'free' length:

*Refurbishment services only
