CONICAL-SPRING SEALS

HR2

  • O-ring, Conical-Spring Drive
  • Shaft Rotation Dependant
  • Metric Sizes - Italian

HR2 is a conical spring-driven mechanical seal for metric shafts, based on the industry standard "Type 2" design. It is commonly found in pumps of Italian origin.



The spring provides both axial and rotational force being tightly wound in the direction of the rotating shaft.  Left or right-hand winding springs must be specified.



An optional "R.C.L." seat is available with an extended tail and anti-rotation pin slot.



Additional non-standard options are available on request, including:

 - Shrink-fitted Rotary Face Suffix "H"

 - "2MC" Short spring Suffix "MC"

 - Open-cave "CA"

 - Driving Sleeve "U"

PARTS

A

B

C

D

E

F

G

Stationary O-ring

Stationary Face / Ring

Rotary Seal Ring

Rotary O-ring

Rotary Conical Spring

Shrink-fitted Rotary Face

Open-cave washer

SEAT OPTIONS

R.C.C.:

R.C.L.:

standard, no slot

extended tail w/ slot

EQUIVALENT

Type 2 range:

2H, 2MC, 2MCH

T03 / T03U

Type 12

42 / P42

BT-RN

RB341 / RB341S

DATA SHEET

  • Operating conditions¹

Temperature:

Pressure:

Speed:

-30°C to +200°C

< 10 bar, 145 psi, 1 MPa

< 10m/s, 2000 fpm

rpm < 600000/(3.14 x D1)

HR2 - Data Sheet

¹Guide-values only (due to diversity of possible applications). Enquire for specific-use cases. Maximum values of each parameter cannot be applied together.

  • Material options

Rotary Face*:

Stationary Face*:

Elastomer:

Metal Parts:

304S.S.

CAB or SiC

N, V or EP

304S.S.

*Shrink-fitted SiC or TC options available on request

TYPE 2

PRODUCT INFORMATION

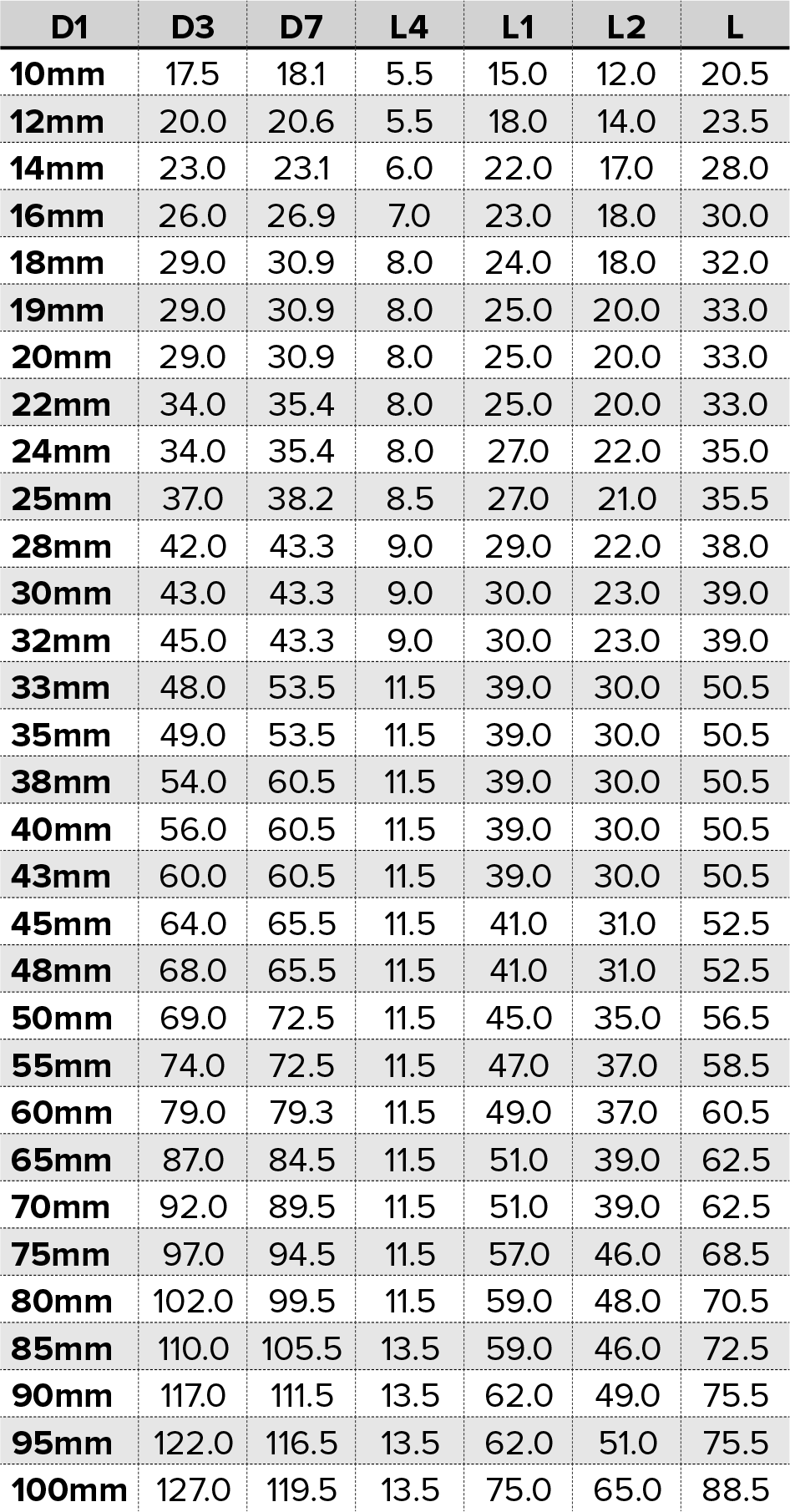

DIMENSIONS

Dimensions refer to installed length, not 'free' length:

Additional sizes >100mm not typically stocked
