PARALLEL-SPRING SEALS

HR00

  • O-ring, Parallel-Spring Drive
  • Shaft Rotation Dependant
  • Imperial & Metric Sizes
  • Marine applications

HR_ series are parallel spring-driven mechanical seals, based on the "R Series" design. It is commonly used in the marine industry and supplied with either solid or inserted rotary face.



The heavy-duty spring is supplied either with left or right-hand wound spring depending on shaft rotation, denoted by suffix R / L.



Three methods of drive are available:



HR00 is driven directly from a modified shaft.



HR10 is driven by a split-sleeve (G) and backing washer (H), intended for shafts with a machined shoulder only.



HR20 is driven by a set-screwed collar, intended for plain straight-shafts.



Additionally, HR30 is as per HR20 but with a double o-ring seat.

  • Operating conditions¹

Temperature:

Pressure:

Speed:

-30°C to +260°C

< 10 bar, 145 psi, 1 MPa

< 22m/s, 4500 fpm

rpm < 1320000/(79.8 x D1 inch)

rpm < 1320000/(3.14 x D1 mm)

¹Guide-values only (due to diversity of possible applications). Enquire for specific-use cases. Maximum values of each parameter cannot be applied together.

  • Material options

PARTS

A

B

C

D

E

F

G

H

I

J

Stationary O-ring

Stationary Face / Ring

Rotary Solid Face

Rotary O-ring

Rotary Parallel Spring

Rotary Inserted Face

R10 Split-Sleeve

R10 Backing Washer

R20 Drive Collar

R20 Set Screw

EQUIVALENT

R Series

P08 / P08U

P260 / P270 / P280

RB655 / RB656 / RB657



Shaft Driven:

R00, RA-0 (imp), RM-0 (met)

Type 95 / 95N



Split Sleeve Driven:

R10, RA-1 (imp), RM-1 (met)

Type 96



Collar Driven:

R20, RA-2 (imp), RM-2 (met)

Type 97

Pillar US-2 / CGU

Japan Ship Machinery and Equipment Association (JSMEA)

Piller US-3 (Imp)

Nihon Sealol: EX Type 355



With Double O-ring Seat:

HR30

Type 98

Nippon Pillar  US-1 / CCU

DATA SHEET

HR00 - Data Sheet

Rotary Face:

     Solid:

     Inserted:

     Coated:

Stationary Face:

     Solid:

     Inserted:

Elastomer:

Metal Parts:



304SS or 316SS

CAB, CER, SiC or TC

Stellite or Ceramic



CAB

SiC or TC

N, V or EP

304S.S.

R SERIES

PRODUCT INFORMATION

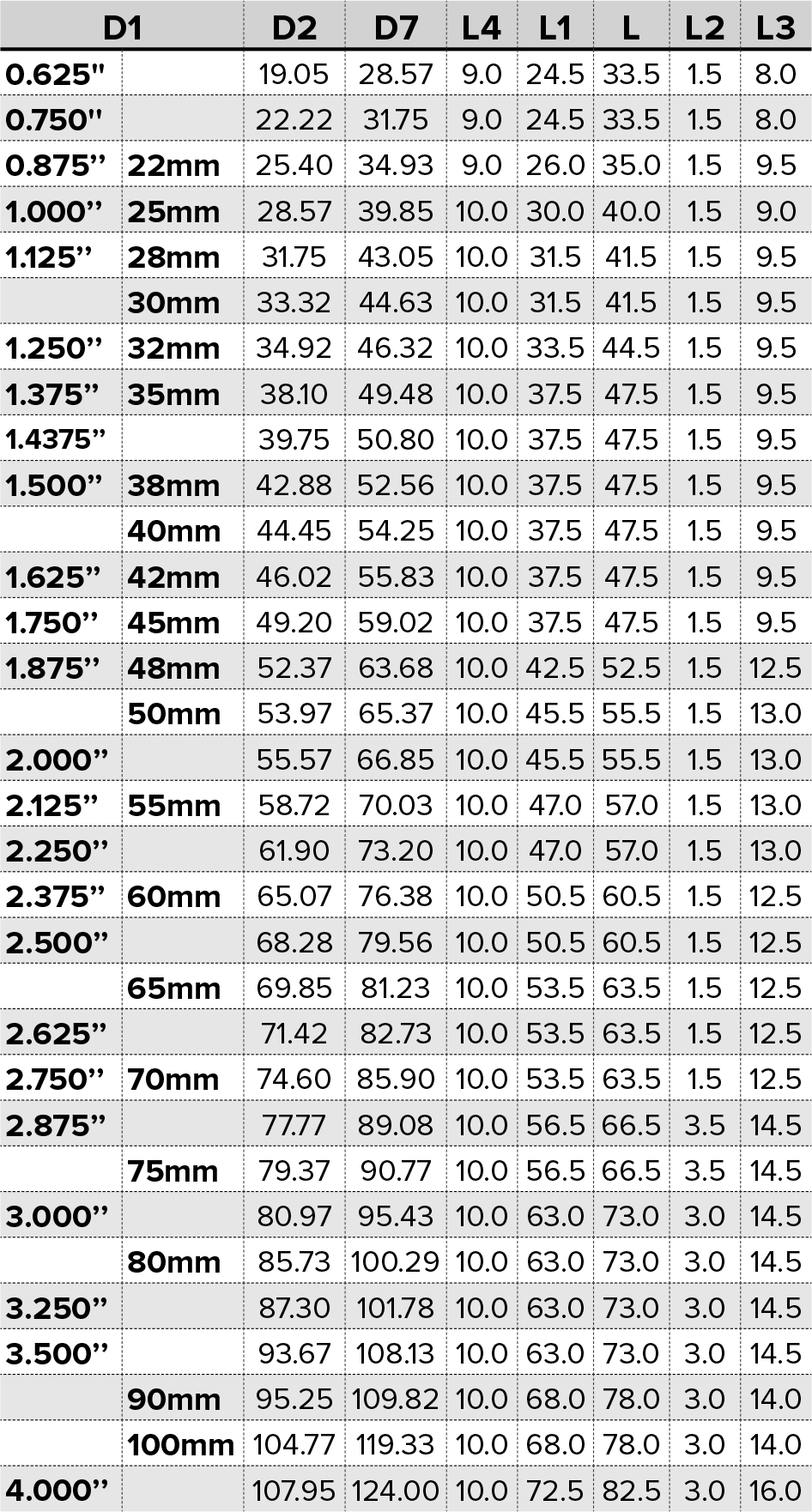

DIMENSIONS

Dimensions refer to installed length, not 'free' length:
