APV® (SPX®) MECHANICAL SEALS

HHL

  • Rotary Lobe Pump Seals
  • Front-Loaded Design
  • Suits APV® HL Pumps

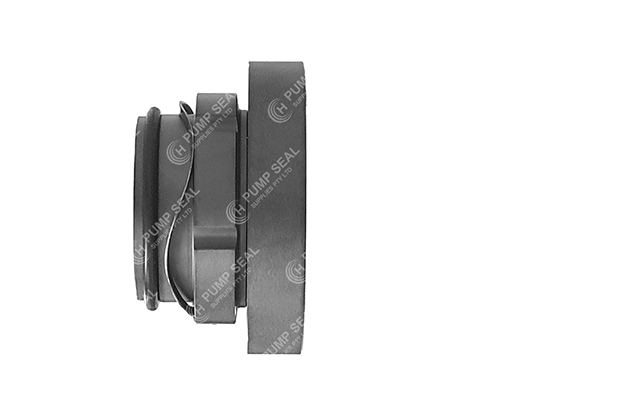

HHL replaces the single & double concentric front-loaded mechanical seal face kit used in APV HL Series Rotary Lobe Positive Displacement pumps.



The concentric seal design enables the double seal to utilise the same components as the single seal, with the addition of an outer seal face.

  • Material options

PARTS

A

B

C

D

E

F

G

Stationary O-ring

Stationary Inner Face

Wave Spring

Outer Face O-ring

Outer Face

Rotary O-ring

Rotary Face / Ring

DATA SHEET

HHL - Data Sheet

Rotary Face:

Inner Face:

Outer Face:

Elastomers:

SiC

SiC

CAB

N, V or EP

OEM names, brands, model or part numbers are used solely for reference. Our components are engineered to deliver performance and service life equivalent to or exceeding that of OEM parts when correctly installed and appropriately applied. APV® is a registered trademark of its respective company. Pump Seal Supplies Pty Ltd are not representative of, nor affiliated with APV®.

APV - HL SEAL

PRODUCT INFORMATION

PUMP COMPATIBILITY

Replaces the mechanical seal in APV "HL" positive displacement rotary lobe pumps:



HL0040, HL0100, HL0140, HL0230, HL0300:

Replaces the OEM part numbers: CNG127216, CNG127210

Replaces the OEM kit numbers: CNG127495
