GRUNDFOS® MECHANICAL SEALS

HGSL

  • OEM Replacement
  • O-ring, Multi-Spring Pusher
  • Balanced
  • Double Seals - Tandem
  • Suits Grundfos S Pumps

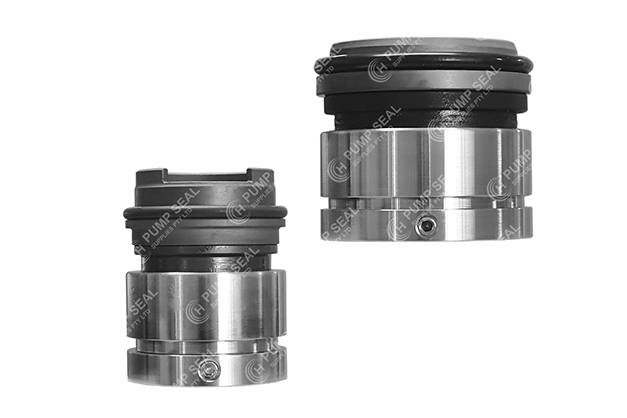

HGSL replaces the mechanical seals fitted to Grundfos S pumps (formerly Sarlin) ranges 50 - 78 with motor sizes up to 520kW.



Two seals are mounted in tandem to form a double seal. Seals are hydraulically balanced, either internally or for larger sizes, via a stepped shaft.



The lower seal stationary has a distinctive slotted profile that engages with the pump housing to provide anti-rotation. The 65mm size also has an extended tail for two o-rings, as per OEM.

PARTS

A

B

C

D

E

F

G

H

I

Stationary O-ring

Stationary Face / Ring

Rotary Face / Ring

Rotary O-ring

Rotary Multi-Springs

Rotary Pin

Rotary Holder

Rotary O-ring

Rotary Set Screws

EQUIVALENT

Upper:

Type 40S8

SSAIS06



Lower

Type 42

M010SA

  • Material options

DATA SHEET

HGSL - Data Sheet

Lower Seal Faces:

Upper Seal Faces:

Elastomer:

Metal Parts:

SiC/SiC

CAB/SiC

V

304SS

OEM names, brands, model or part numbers are used solely for reference. Our components are engineered to deliver performance and service life equivalent to or exceeding that of OEM parts when correctly installed and appropriately applied. Grundfos® is a registered trademark of its respective company. Pump Seal Supplies Pty Ltd are not representative of, nor affiliated with Grundfos®.

S-PUMPS - SARLIN SEALS

PRODUCT INFORMATION

Upper

Lower

PUMP COMPATIBILITY

Replaces the double mechanical seals in Grundfos® S range submersible wastewater pumps:



S - Range 50, 54, 58, 62, 66, 70, 72, 74 & 78

Replaces the mechanical seal from OEM:

96567348, 96567350, 96567355, 96567358, 96844618, 96293941, 97536236, 97536234, 96567338, 96567341, 96567343, 96567343, 96293942, 97536237, 97536235
