GRUNDFOS® MECHANICAL SEALS

HGPDCR

  • OEM Replacements
  • Suits Grundfos SE, SL Pumps

PARTS

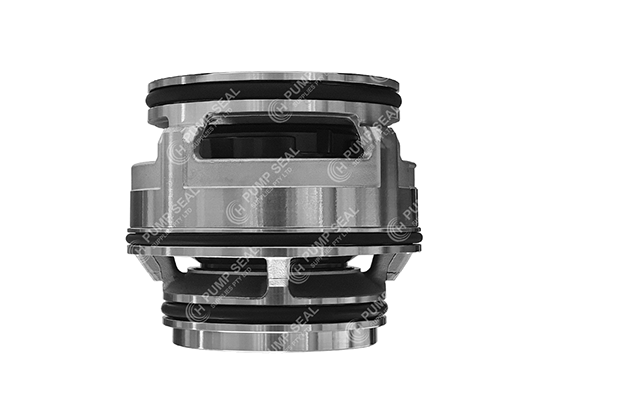

HGPDCR replaces the double mechanical cartridge shaft seal typically fitted to Grundfos SE, and SL submersible wastewater pumps with 2 or 4-pole motor sizes < 30 kW.



The plug-in cartridge design features two independent wave-spring pusher mechanical seals mounted in a single ready-to-install compact unit. The axial flow propeller provides additional cooling flow

  • Material options

Rotary Face:

Stationary Face:

Elastomer:

Metal Parts:

SiC/SiC

CAB/SiC

V

304S.S.

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

Seal Housing O-ring

Seal Housing

Seal Housing O-ring

Seal Housing O-ring

Outb. Stationary O-ring

Outb. Stationary Face

Outb. Rotary Face

Outb. Rotary O-ring

Outb. Wave Spring

Propeller

Inb. Wave Spring

Inb. Sleeve O-ring

Inb. Rotary O-ring

Seal Sleeve

Inb. Rotary Face

Inb. Stationary Face

Inb. Stationary O-ring

Inb. Stationary O-ring

Setting Ring

DATA SHEET

HGPDCR - Data Sheet

OEM names, brands, model or part numbers are used solely for reference. Our components are engineered to deliver performance and service life equivalent to or exceeding that of OEM parts when correctly installed and appropriately applied. Grundfos® is a registered trademark of its respective company. Pump Seal Supplies Pty Ltd are not representative of, nor affiliated with Grundfos®.

SUBMERSIBLE PUMP - DOUBLE CART.

PRODUCT INFORMATION

PUMP COMPATIBILITY

Replaces the shaft seal in Grundfos® SE & SL submersible wastewater pumps:



SE, SL - Range 52 (9 to 30 kW)

Replaces the mechanical seal from OEM:

92773081, 92773089
