GRUNDFOS® MECHANICAL SEALS

HGM3

  • Seal Code "C-"
  • OEM Replacement
  • Older Grundfos CH Pumps

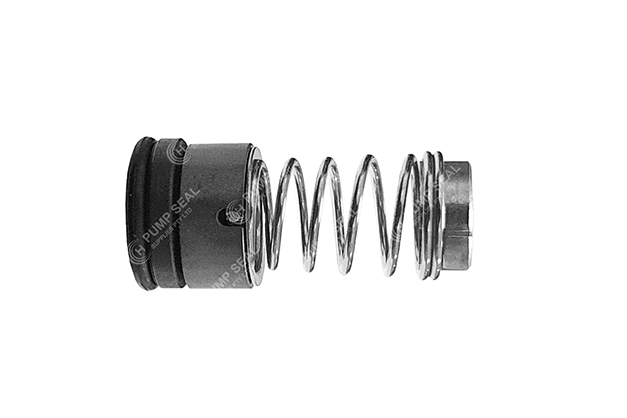

HGM3 replaces the Type "C-" code component seals typically fitted to older Grundfos CH - Horizontal Multistage pumps.



The unbalanced o-ring design features the spring acting as the torque transmission element. Shaft and seal dimensions were made according to DIN 24960.



The spring cap has female "slots" that lock into a pump's rotational element.

PARTS

A

B

C

D

E

F

G

Stationary O-ring

Stationary Face / Ring

Rotary Face / Ring

Rotary O-ring

Rotary Thrust Ring

Rotary Spring

Rotary Spring Cap

DATA SHEET

HGM3 - Data Sheet
  • Material options

Rotary Face:

Stationary Face:

Elastomer:

Metal Parts:

SiC

CAB

EPDM

304S.S.

OEM names, brands, model or part numbers are used solely for reference. Our components are engineered to deliver performance and service life equivalent to or exceeding that of OEM parts when correctly installed and appropriately applied. Grundfos® is a registered trademark of its respective company. Pump Seal Supplies Pty Ltd are not representative of, nor affiliated with Grundfos®.

CH PUMP - SEAL CODE "C-"

PRODUCT INFORMATION

PUMP COMPATIBILITY

Replaces the seal in older Grundfos® CH horizontal multi-stage pumps fitted with "C-" code seals:



CH, CHV 2, 4

Replaces the mechanical seal only from OEM kits:

985164, 985751
