GRUNDFOS® MECHANICAL SEALS

HGCR

  • Cartridge Seal
  • OEM Replacement
  • Suits Grundfos CR Range

HGCR replaces the Type "H-" code cartridge seals fitted to Grundfos CR - Vertical Multistage pumps.



The cartridge design, originally introduced into CR pumps produced after 2000, features a balanced o-ring design and since 2004, all seal ring materials are supplied in SiC.

  • General installation

Shaft seal replacement in Grundfos CR pumps requires prior:

      - removal of coupling & guards

      - removal of motor & bolts.

PARTS

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Setting Collar

Set Screws

Spacer (16mm & 22mm)

PTFE Wear Ring

Seal Housing

Housing O-ring

Threads (12mm & 16mm)

Stationary O-ring

Stationary Face / Ring

Rotary Face / Ring

Seal Body

Rotary O-ring

Seal Sleeve

Seal Spring

Seal Body

Sleeve O-ring

  • Seal installation

EQUIVALENT

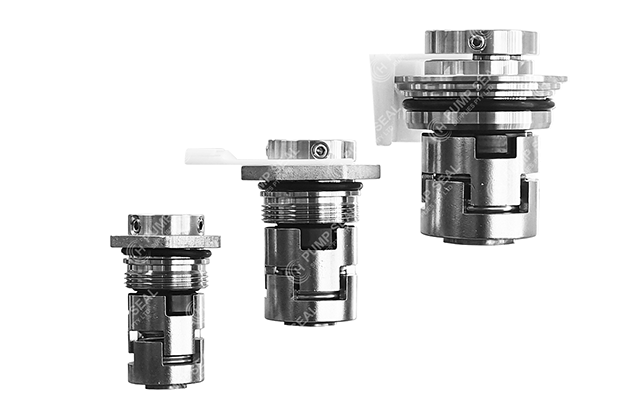

Available in three sizes.



The 12mm & 16mm seal are designed for the CR "Small" and "Medium" pump ranges. The seal housing features a  threaded design for a screw-fit installation using the hex-nut. Only the 16mm seal requires use of a spacer (supplied) to ensure proper alignment.



The 22mm seal is designed for the CR "Large" pump range. The seal requires use of a spacer (supplied) and is simply plugged-in to install.

RB706

M0GCH / M0GCE

Type 953 / 954



96455086

96455087

96511844

96511845

96525458

96525490

DATA SHEET

  • Material options

HGCR - Data Sheet

HQQE:

HQQV:

SiC/SiC/EPDM

SiC/SiC/Viton

OEM names, brands, model or part numbers are used solely for reference. Our components are engineered to deliver performance and service life equivalent to or exceeding that of OEM parts when correctly installed and appropriately applied. Grundfos® is a registered trademark of its respective company. Pump Seal Supplies Pty Ltd are not representative of, nor affiliated with Grundfos®.

CR PUMP - SEAL CODE "H-"

PRODUCT INFORMATION

PUMP COMPATIBILITY

Replaces the cartridge seal in Grundfos® CR vertical multi-stage pumps fitted with "H-" code seals (typically supplied standard on pumps manufactured after 2000)



CR "Small" pump range and "-N", "-I" & "E" variants:

CR, CRE, CRN, CRNE, CRI, CRIE 1s, 1, 3, 5



CR "Medium" pump range and "-N", "-I" & "E" variants:

CR, CRE, CRN, CRNE, CRI, CRIE 10, 15, 20



CR "Large" pump range and "-N", "-I" & "E" variants:

CR, CRE, CRN, CRNE, CRI, CRIE 32, 45, 64, 90
