GRUNDFOS® MECHANICAL SEALS

HGCM

  • Seal Code 'A-'
  • OEM Replacement
  • Suits Grundfos CM Pumps

HGPD replaces the Type "A-" code component seals typically fitted to Grundfos CM - Horizontal Multistage pumps.



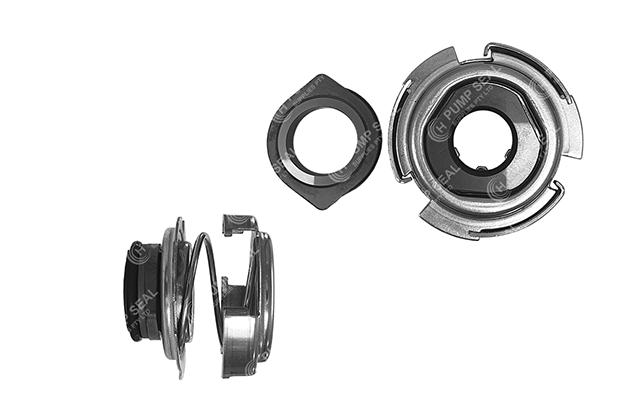

The compact o-ring design features a fixed seal driver, with a special "winged" stationary for anti-rotation.

PARTS

A

B

C

D

E

F

G

H

Stationary O-ring

Stationary Face / Ring

Rotary Face / Ring

Rotary O-ring

Rotary Retainer

*excluded* Stop Ring

Rotary Driver

Rotary Spring

DATA SHEET

  • Material options

Rotary Face:

Stationary Face:

Elastomer:

Metal Parts:

SiC

SiC or CAB

V

304S.S.

HGCM - Data Sheet

OEM names, brands, model or part numbers are used solely for reference. Our components are engineered to deliver performance and service life equivalent to or exceeding that of OEM parts when correctly installed and appropriately applied. Grundfos® is a registered trademark of its respective company. Pump Seal Supplies Pty Ltd are not representative of, nor affiliated with Grundfos®.

CM PUMP - SEAL CODE "A-"

PRODUCT INFORMATION

PUMP COMPATIBILITY

Replaces the seal in older Grundfos® CM horizontal multistage pumps fitted with "A-" code seals:



CM, CMB, CME, CMBE 1, 3, 5

Replaces the mechanical seal only from OEM kits:

96932350, 96932392, 988219372, 98821938, 98092347, 96932438, 96932440, 96932441, 98810275, 98806252, 98463764



CM, CMB, CME, CMBE 10, 15, 25

Replaces the mechanical seal only from OEM kits:

96932393, 96932394, 98821932, 98821933, 96932443, 96932445, 96932446, 98821912, 98821920, 98463766
