GRUNDFOS® MECHANICAL SEALS

HG3

  • Seal Code 'B-'
  • OEM Replacement
  • Older Centrifugal Pumps

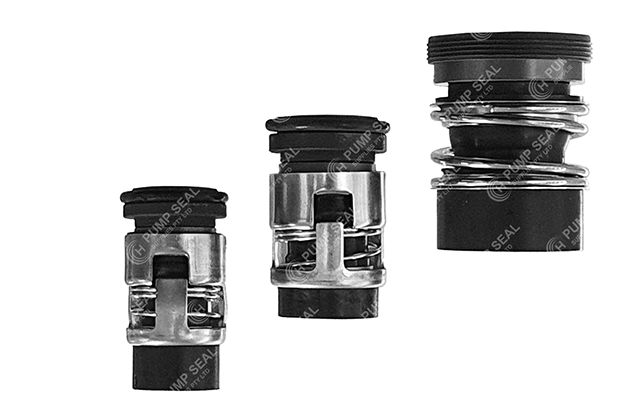

HG3 replaces the Type "B-" code component seals typically fitted to older Grundfos centrifugal pumps.



The bellows extend the full length of the seal, protecting the shaft against wear. Shaft and seal dimensions made according to DIN 24960 (EN 12756) version NU.



The 12mm & 16mm sizes feature a Grundfos-design intermeshing rigid torque transmission system. Fitted to older CR and TP Series 200 pumps.



The 22mm size uses a traditional bellows along with a cup-mounted stationary. Fitted to older LM, LP, NM and NP pumps.

PARTS

A

B

C

D

E

F

G

Stationary O-ring

Stationary Face / Ring

Rotary Face / Ring

Rotary Driver

Rotary Driver

Rotary Spring

Rotary Rubber Bellows

EQUIVALENT

Type 192G / 196

DATA SHEET

HG3 - Data Sheet
  • Material options

Rotary Face:

Stationary Face:

Elastomer:

Metal Parts:

SiC or TC

CAB or SiC

V or EP

304S.S.

OEM names, brands, model or part numbers are used solely for reference. Our components are engineered to deliver performance and service life equivalent to or exceeding that of OEM parts when correctly installed and appropriately applied. Grundfos® is a registered trademark of its respective company. Pump Seal Supplies Pty Ltd are not representative of, nor affiliated with Grundfos®.

SEAL CODE "B-"

PRODUCT INFORMATION

DIMENSIONS

Dimensions refer to installed length, not 'free' length:

PUMP COMPATIBILITY

Replaces the seal in older Grundfos® CR vertical multi-stage pumps fitted with "B-" code seals:



CR, CRN, CRI, CRK, CRKI, CRT 2, 4

Replaces the mechanical seal only from OEM kits:

405096, 405097, 405348, 405347, 415085



CR, CRN, CRI, CRK, CRKI, CRT 8, 16

Replaces the mechanical seal only from OEM kits:

425062, 425063, 425763, 425762



Replaces the seal in Grundfos® centrifugal pumps:

TP (Series 200)

LM, LME, LMD, LMDE

LP, LPE, LPD, LPDE

NM, NME, DNM, DNME

NP, NPE, DNP, DNPE
