GRUNDFOS® MECHANICAL SEALS

HG2

  • Seal Code 'B-'
  • OEM Replacement
  • Suits Grundfos TP Series 100

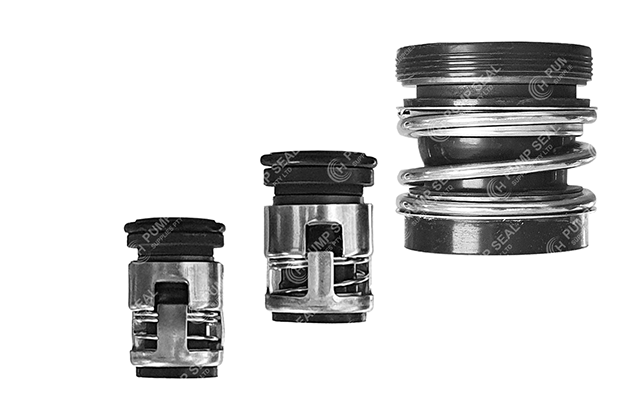

HG2 replaces the Type "B-" code component seals typically fitted to Grundfos TP Series 100 - Vertical In-Line pumps.



The bellows extend the full length of the seal, protecting the shaft against wear. Shaft and seal dimensions made according to DIN 24960 (EN 12756) version KU.



The 12mm & 16mm sizes feature a Grundfos-design intermeshing rigid torque transmission system.

The 33mm size uses a traditional bellows along with a cup-mounted stationary. Fitted to larger 2-pole LP and NP pumps.

PARTS

A

B

C

D

E

F

G

Stationary O-ring

Stationary Face / Ring

Rotary Face / Ring

Rotary Driver

Rotary Driver

Rotary Spring

Rotary Rubber Bellows

EQUIVALENT

Type 192G

DATA SHEET

HG2 - Data Sheet
  • Material options

Rotary Face:

Stationary Face:

Elastomer:

Metal Parts:

SiC

CAB or SiC

V or EP

304S.S.

OEM names, brands, model or part numbers are used solely for reference. Our components are engineered to deliver performance and service life equivalent to or exceeding that of OEM parts when correctly installed and appropriately applied. Grundfos® is a registered trademark of its respective company. Pump Seal Supplies Pty Ltd are not representative of, nor affiliated with Grundfos®.

TP PUMP - SEAL CODE "B-"

PRODUCT INFORMATION

DIMENSIONS

Dimensions refer to installed length, not 'free' length:

PUMP COMPATIBILITY

Replaces the seal in Grundfos® centrifugal pumps fitted with "B-" code seals:

TP (Series 100)

LP, LPE, LPD, LPDE

NP, NPE, DNP, DNPE

▶ Special 16mm Size - Cup Mounted

Special cup-mounted version used in Grundfos® smaller submersible pumps:



Unilift AP 12, 35, 35B, 50, 50B

Replaces the mechanical seal only from OEM kits:

96427804, 96426650, 96429307, 96429308



SEG.40 (0.9 - 1.5 kW)

Replaces the mechanical seal only from OEM kits:

96076122
