RUBBER BELLOW SEALS

HG1S20

  • Rubber bellows drive
  • Shaft protection
  • Independent of direction of rotation
  • To suit Euro-metric dimensions

HG1S20 is to suit European installation requirements. It is a rubber bellows mechanical seal which is friction-driven by an elastomer bellows. It provides protection to the shaft over the entire seal length, and is insensitive to shaft deflections due to large axial movement ability. Recommended for duties containing media with solids etc.



Pump-specific and / or modified versions of HG1S20 exist, usually to a custom working length.

PARTS

A

B

C

D

E

F

Seat Cup

Seat (G60 Standard)

Rotary Face

Rubber Bellows

Spring

L-ring / Collar

EQUIVALENT

MG1S20

STANDARD SEAT

G50, N

W

metric euro cup seat

metric euro o-ring seat

DATA SHEET

  • Operating conditions

Temperature:

Pressure:

Speed:

-20°C to 200°C

up to 12 bar, 175 psi

up to 10m/s, 2000 fpm

HG1S20 - Data Sheet
  • Material options

Rotary Face:

Stationary Face:

Elastomer:

Metal Parts

CAB, SiC

SiC

N, V or EP

Stainless Steel

MG1S20

PRODUCT INFORMATION

DIMENSIONS

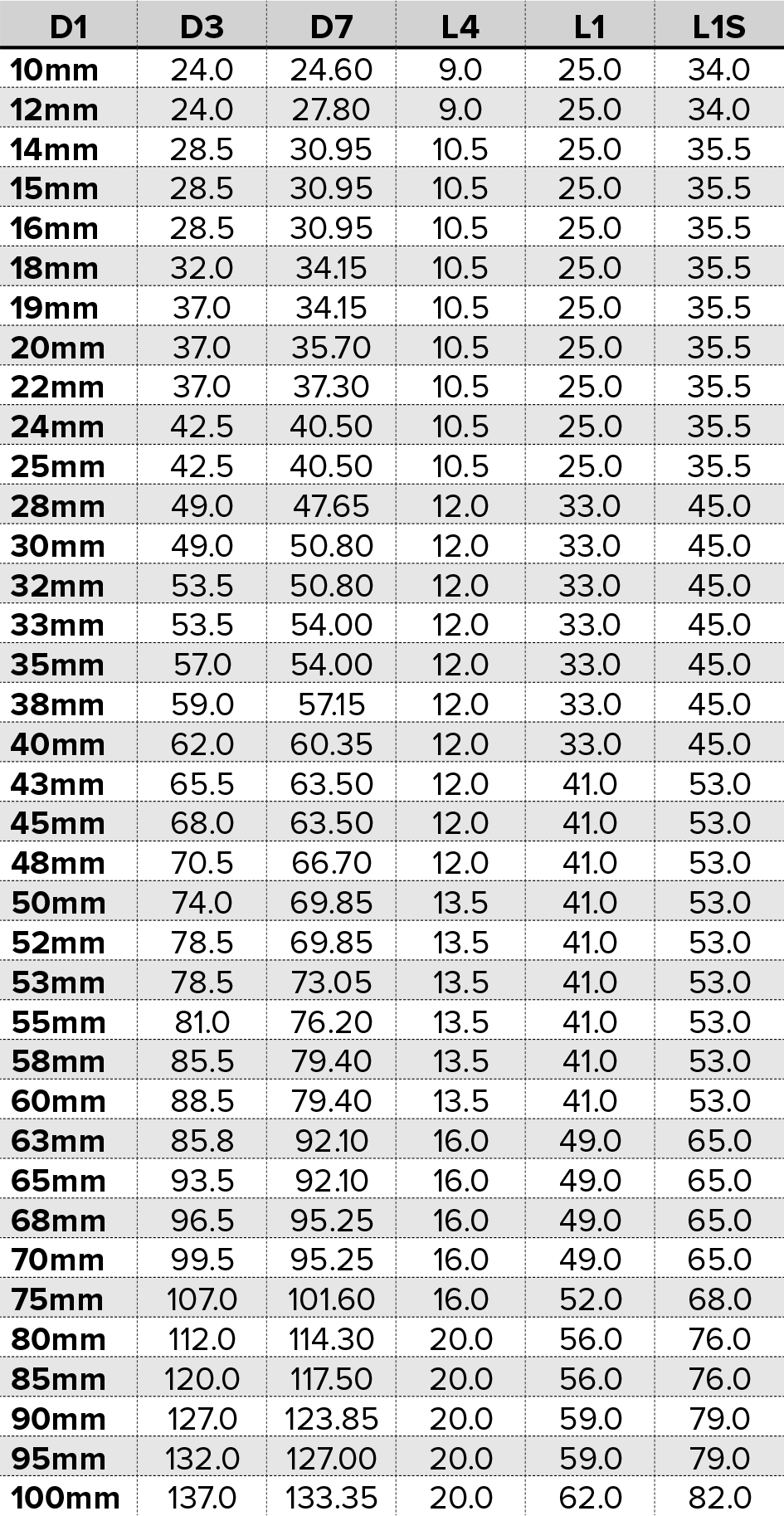

note: dimensions refer to installed length, not 'free' length
