RUBBER BELLOW SEALS

HG1

  • Rubber Bellows Drive
  • Interchangeable With MG1
  • Compact Fitting Length
  • Bi-directional

HG1 is a compact mechanical seal

for metric shafts, based on the industry standard "MG1" design. It is suitable for solids-containing media as

the bellows extend the full length of

the seal, protecting the shaft against

wear.



Metric shaft sizes and seat cavities

are standardised to DIN EN 12756,

except for the special compact fitting

length.



An optional "G6" o-ring mounted seat

is available.

PARTS

A

B

C

D

E

F

G

Stationary Cup

Stationary Face / Ring

Rotary Face / Ring

Rotary "L" Ring

Rotary Rubber Bellows

Rotary Spring

Rotary "L" Ring

SEAT OPTIONS

G60

G6

G4

G9

G50

standard

o-ring mounted

o-ring, euro cavity

o-ring, slotted

cup, euro

EQUIVALENT

  • Operating conditions¹

Temperature:

Pressure:

Speed:

-20°C to +200°C

< 12 bar, 175 psi, 1.2 MPa

< 10m/s, 2000 fpm

rpm < 600000/(3.14 x D1)

MG1

B02 / B02S / B02SS / B02SL

Type 19 / 19B / 19L / 19S

140 / P140

190 / P190

RB610

¹Guide-values only (due to diversity of possible applications). Enquire for specific-use cases. Maximum values of each parameter cannot be applied together.

DATA SHEET

  • Material options

HG1 - Data Sheet

Rotary Face:

Stationary Face:

Elastomer:

Metal Parts:

CAB, A1 or SIC

SiC

N, V or EP

304S.S.

MG1

PRODUCT INFORMATION

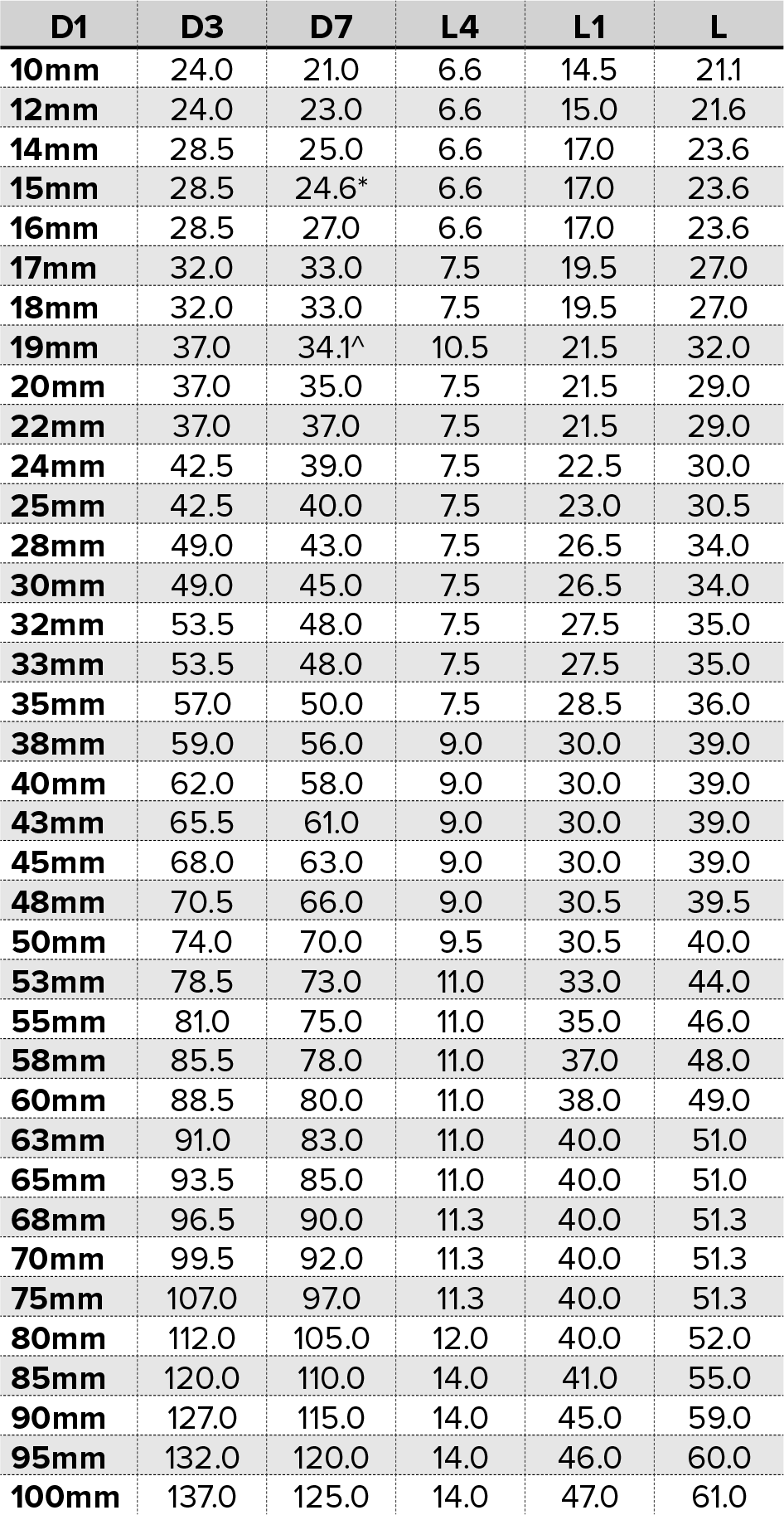

DIMENSIONS

Dimensions refer to installed length, not 'free' length:

*G4 Seat Standard    ^G50 Seat Standard
