GODWIN® MECHANICAL SEALS

HFD

  • Double Seal, Back-to-Back
  • Spring-driven Outboard Seal
  • OEM: Type 2
  • For Godwin® Dri-Prime® Pumps

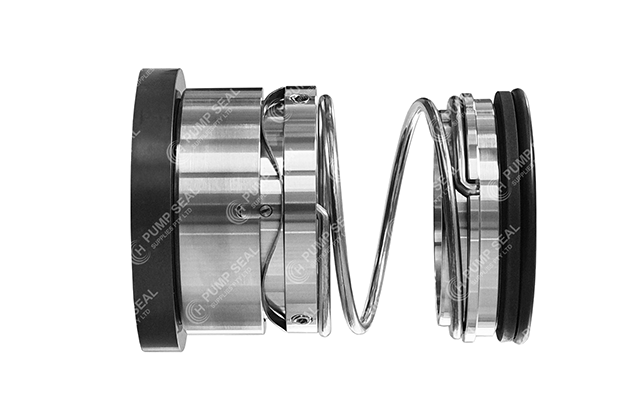

HFD is equivalent to the "Type 2" heavy duty double mechanical seals in Godwin Dri-Prime pump range.



The inboard seal features a wave-spring o-ring design and is set-screwed to the shaft. The stationary is of a monolithic clamped-in block-type design.



The outboard seal features a legged spring on both ends which provides positive torque to the outboard rotary face.

PARTS

A

B

C

D

E

F

G

H

I

J

K

L

M

N

Inb. Stationary O-ring

Inb. Stationary Face

Inb. Rotary Face

Inb. Rotary O-ring

Inb. Rotary Holder

Inb. Rotary Drive Collar

Inb. Rotary O-ring

Inb. Rotary Set Screws

Outb. Spring

Outb. Rotary Holder

Outb. Rotary O-ring

Outb. Rotary Face

Outb. Stationary Face

Outb. Stationary O-ring

EQUIVALENT

  • Materials

Type 1653D

Inboard Faces:

Outboard Faces:

Elastomers:

Metal Parts:

SiC/SiC

SiC/CAB

V

304SS

DATA SHEET

HFD - Data Sheet

OEM names, brands, model or part numbers are used solely for reference. Our components are engineered to deliver performance and service life equivalent to or exceeding that of OEM parts when correctly installed and appropriately applied. Godwin® Dri-Prime® Xylem® is a registered trademark of its respective company. Pump Seal Supplies Pty Ltd are not representative of, nor affiliated with Godwin® Xylem®.

GODWIN - TYPE 2 - DOUBLE SEAL

PRODUCT INFORMATION

PUMP COMPATIBILITY

Replaces the mechanical seal in Godwin® pumps:



CD Range

CD160M Mk. 2, CD180M, CD300M (open-coupled versions only)



HL Range

HL130M (earlier versions), HL160M, HL225M, HL250M



OEM Seal Kits

Replaces the mechanical seal only from OEM kits:

SK06, SK09, GPCD300MSK09, SK44, GPHL130160MSK44, SK46, GPHL225250MSK46



OEM Seal

Replaces the mechanical seal itemised part numbers:

38-1532-9913, 38-0666-4112, 38-1534-9912, 38-1533-9912,

38-1565-9912, 38-1564-9912
