DAVEY® MECHANICAL SEALS

HDCR

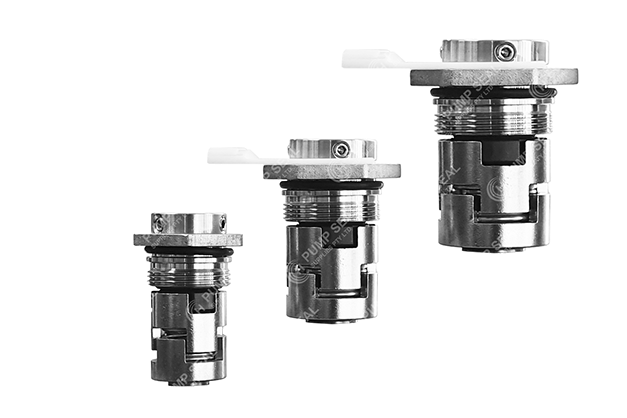

  • Screwed Cartridge Seal
  • OEM Replacement
  • Suits Older Davey VM Pumps

HDCR replaces the newer screwed-in

cartridge seals fitted to newer Davey VM (M Series) - Vertical Multistage pumps.

  • Seal Installation

Available in three sizes.



All seals sizes feature a threaded design for a screw-fit installation using

the hex-nut. A spacer (supplied)

is used to set the correct compression

distance.

  • Material options

PARTS

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Setting Collar

Set Screws

Spacer

PTFE Wear Ring

Seal Housing

Housing O-ring

Threads

Stationary O-ring

Stationary Face / Ring

Rotary Face / Ring

Seal Body

Rotary O-ring

Seal Sleeve

Seal Spring

Seal Body

Sleeve O-ring

Seal Faces:

Elastomers:

SiC/SiC

EPDM or Viton

EQUIVALENT

303011071206

303011071607

DATA SHEET

HDCR - Data Sheet

OEM names, brands, model or part numbers are used solely for reference. Our components are engineered to deliver performance and service life equivalent to or exceeding that of OEM parts when correctly installed and appropriately applied. Davey® is a registered trademark of its respective company. Pump Seal Supplies Pty Ltd are not representative of, nor affiliated with Davey®.

SCREWED CARTRIDGE SEAL

PRODUCT INFORMATION

PUMP COMPATIBILITY

Replaces the threaded cartridge seals in newer Davey®

VM M Series vertical multi-stage pumps:



VM1, VM3, VM5 pumps



VM10, VM15, VM20 pumps



VM32, VM42, VM65, VM90 pumps



VM120, VM150, VM200 pumps
