CARTRIDGE SEALS

HCRTX

  • Single Cartridge Seal
  • Balanced, Bidirectional
  • Simple Installation
  • Flushing Connection

HCRTX are fully pre-assembled single cartridge seal units. They are balanced and can be used in either direction of rotation.



Simply bolt the seal plate onto the existing housing studs, tie the setting collar set screws and remove the setting clips.



Wear face kits & refurbishment services for existing units available on request.

  • Operating conditions¹

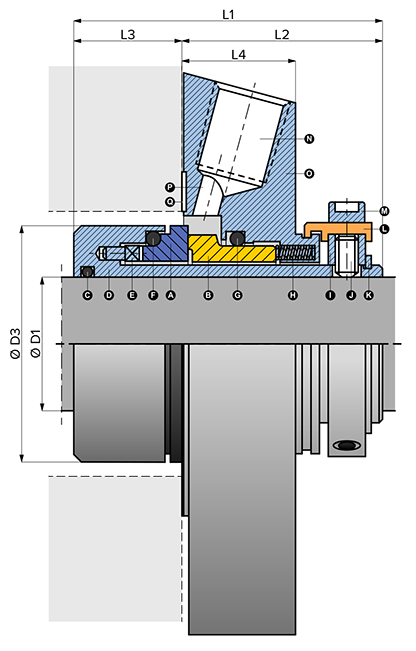

PARTS

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

Rotary Face / Ring

Stationary Face / Ring

Rotary Sleeve O-ring

Rotary Sleeve

Rotary Locking Pin

Rotary O-ring

Stationary O-ring

Stationary Multi-springs

Setting Collar

Set Screws

Circlip

Setting Clip

Setting Screws

Flush Plug

Seal Plate

Flush Port

PTFE Gasket

EQUIVALENT

Cartex-SN

Temperature:

Pressure:

Speed:

-40°C to +220°C

< 25 bar, 360 psi, 2.5 MPa

< 16m/s, 3150 fpm

rpm < 960000/(3.14 x D1 mm)

¹Guide-values only (due to diversity of possible applications). Enquire for specific-use cases. Maximum values of each parameter cannot be applied together.

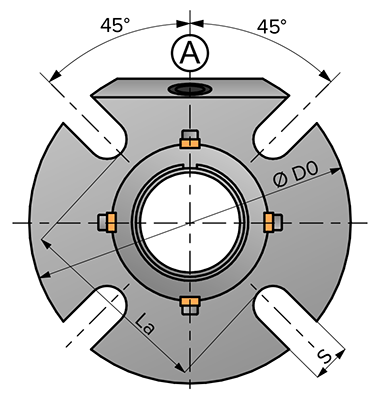

FLUSHING

(A) 3/8" NPT

  • Material options

Rotary Face:

Stationary Face:

Elastomer:

Metal Parts

SiC

SiC or CAB

V or EP

316S.S.

DATA SHEET

HCRTX - Data Sheet

SINGLE CARTRIDGE SEAL

PRODUCT INFORMATION

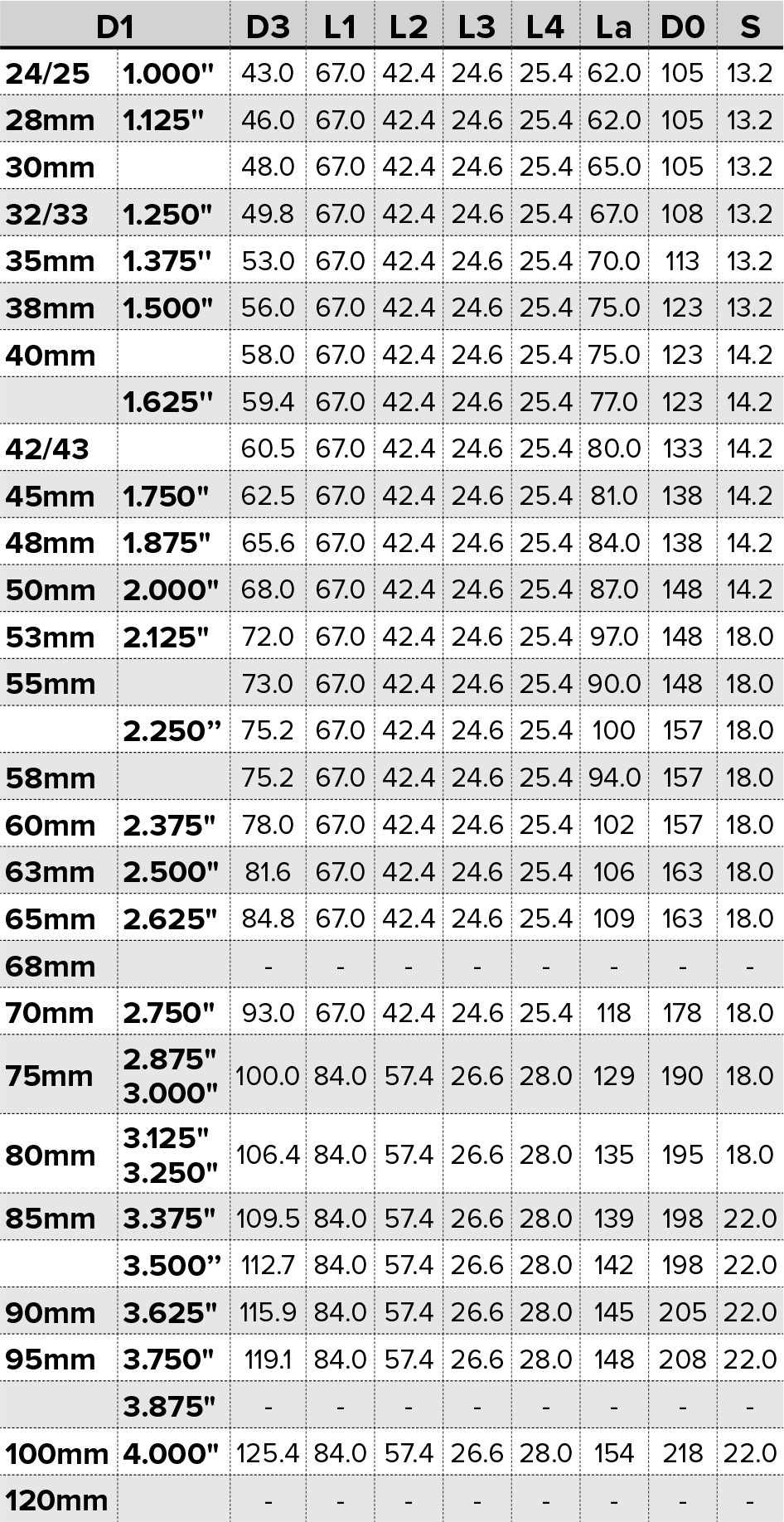

DIMENSIONS

Dimensions refer to installed length, not 'free' length:
