DAVEY® MECHANICAL SEALS

HCR3

  • Bolted Cartridge Seal
  • OEM Replacement
  • Suits Older Davey VM Pumps

HCR3 replaces the bolted-in cartridge

seals fitted to older Davey VM - Vertical Multistage pumps.

  • Seal Installation

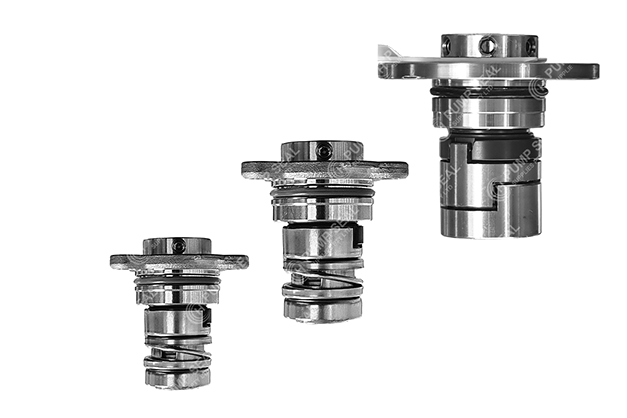

Available in three sizes.



The 12mm & 16mm seals are mounted

via 3 x bolts on the seal housing

(D). After bolting, simply fasten the

set screws (B) to the shaft. No additional spacers are needed as the

wearing PTFE Ring (C) provides the

correct compression distance once

worn away.



The 22mm seal requires use of an

spacer (supplied) to set the correct

compression distance.

PARTS

A

B

C

D

E

F

G

H

I

J

K

L

M

N

Setting Collar

Set Screws

PTFE Ring

Seal Housing

Housing O-ring

Stationary O-ring

Stationary Face / Ring

Rotary Face / Ring

Rotary O-ring

Ferrule

Seal Sleeve

Seal Spring

Seal Body

Shaft O-ring

EQUIVALENT

303011071206-G3

303011071607-G3

DATA SHEET

  • Material options

12mm & 16mm:

22mm:

SiC/SiC/V

SiC/SiC/EPDM

HCR3 - Data Sheet

OEM names, brands, model or part numbers are used solely for reference. Our components are engineered to deliver performance and service life equivalent to or exceeding that of OEM parts when correctly installed and appropriately applied. Davey® is a registered trademark of its respective company. Pump Seal Supplies Pty Ltd are not representative of, nor affiliated with Davey®.

BOLTED CARTRIDGE SEAL

PRODUCT INFORMATION

PUMP COMPATIBILITY

Replaces the bolted cartridge seal in older Davey® VM

vertical multi-stage pumps:



VM1, VM3, VM5 pumps



VM10, VM16, VM20 pumps



VM32, VM42, VM65, VM90 pumps



Also replaces the bolted cartridge seal in CNP® CDM &

CDMF vertical multi-stage pumps:



CDM1, CDM3, CDM5 pumps



CDM10, CDM16, CDM20 pumps



CDM32, CDM42, CDM65, CDM90 pumps
