RUBBER BELLOW SEALS

HC1 / HC12

  • Rubber Bellows Drive
  • To DIN EN 12756 Standards
  • High Speed
  • Bi-Directional

HC_ series are based on the industry

standard "Type 2100" design. HC12 is

standardised to DIN EN 12756 "L1k"

operating length while HC1 is standardised to DIN EN 12756 "L1s".



The HC_ design utilises inter-meshing

metal tags which protect the bellows

from torsional strain under higher operating speeds.



An optional "BS" o-ring mounted seat is available.

  • Operating conditions¹

Temperature:

Pressure:

Speed:

-20°C to +200°C

< 20 bar, 290 psi, 2 MPa

< 15m/s, 3000 fpm

rpm < 900000/(3.14 x D1)

PARTS

A

B

C

D

E

F

G

Stationary Cup

Stationary Face / Ring

Rotary Face / Ring

Rotary Holder

Rotary Spring

Rotary Drive Collar

Rotary Rubber Bellows

SEAT OPTIONS

C60

BS

standard

o-ring mounted

EQUIVALENT

T2100, 2100K, 2100S

B05 / B05U / B052 / B092U

B05S / B052S / B092SSU

Type 14DIN / 14DINS

Type 142DIN / 142DINS

RB210 / RB212

¹Guide-values only (due to diversity of possible applications). Enquire for specific-use cases. Maximum values of each parameter cannot be applied together.

  • Material options

Rotary Face:

Stationary Face:

Elastomer:

Metal Parts:

CAB or SiC

SiC

N, V or EP

304S.S.

TYPE 2100

PRODUCT INFORMATION

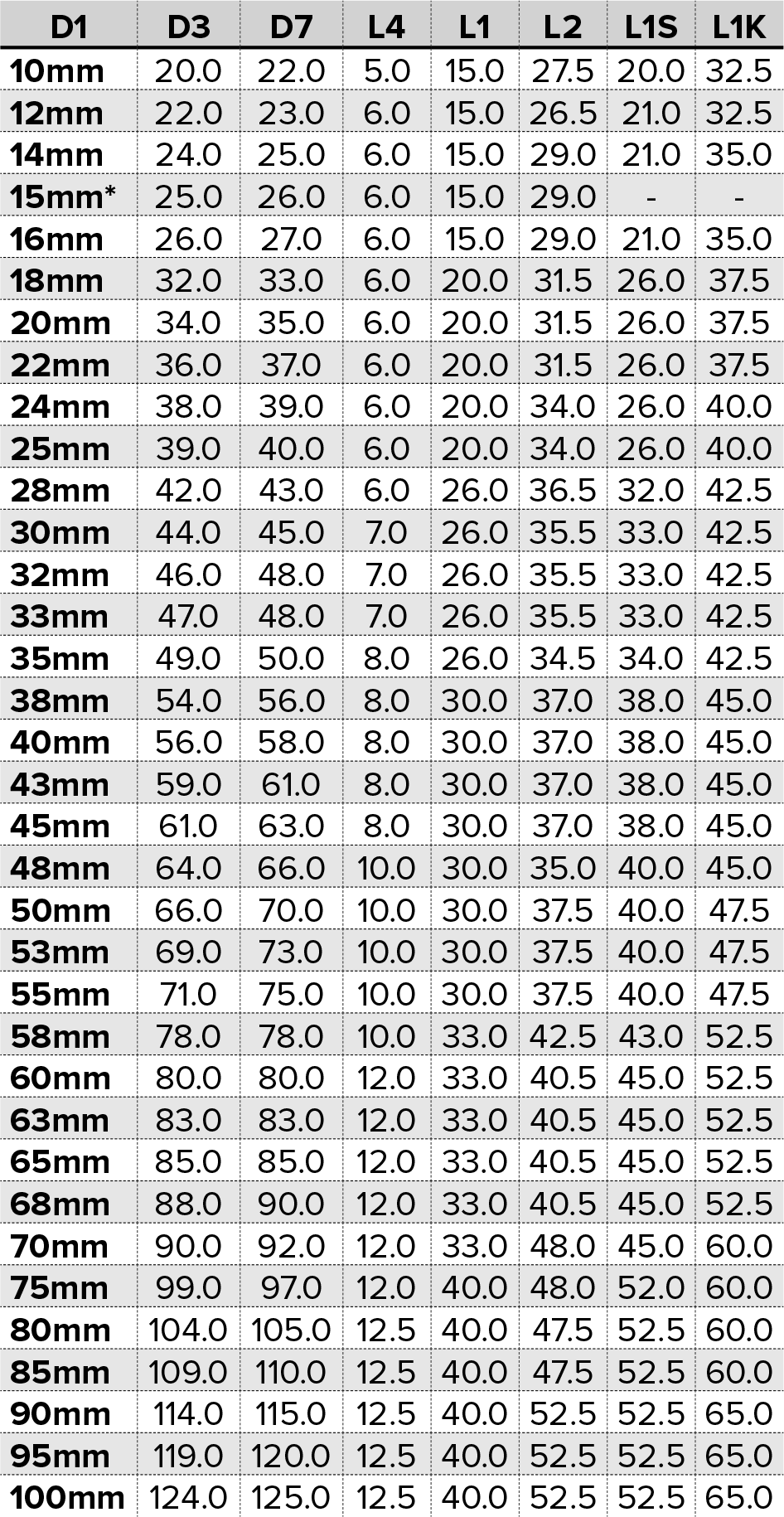

DIMENSIONS

Dimensions refer to installed length, not 'free' length:

*non-DIN EN 12756 size
