ALFA LAVAL® MECHANICAL SEALS

HA-CTM

  • Contherm™ - Flushed Seals
  • Hard Face Seal Assembly
  • Suits Alfa Laval® Contherm™

PARTS

1

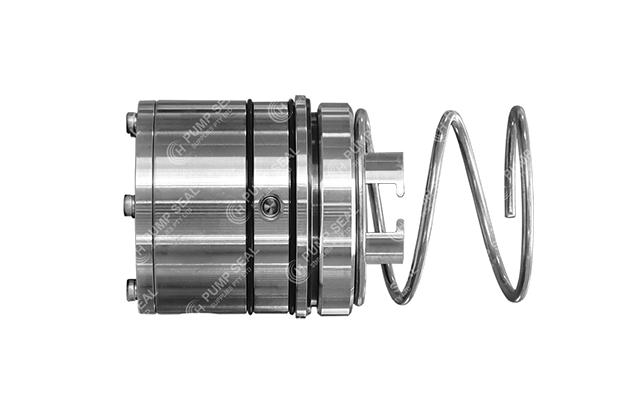

Flushed Seal Bushing Assy.

HA-CTM replaced the "Flushed Hard Face Rotary Seals" in Alfa Laval Contherm™ Scraped-Surface Heat Exchangers (SSHE's) used in the processing of particularly viscous, heat sensitive, sticky or solids-containing products.



The flushed seal assembly uses the same 2.000'' rotary component from the "Standard Seal Assembly" but used in conjunction with a 1.500'' seal to form a chamber for flushing or sterilising the non-product side of the seal.

  • Material options

2

3

A

B

C

D

E

F

Cap Screw (x6)

Outer Seal Face

O-ring

Seal Bushing*

O-ring

Set Screws (x3)

Seal Shell Assembly, 1.5"

G

H

I

Seal Face

O-ring

Seal Shell

Seal Shell Assembly, 2.0"

J

K

L

Seal Face

O-ring

Seal Shell

Inboard:

Outboard:

Elastomers:

Metal Parts:

(TC)*/(TC)

(TC)/(TC)

Viton

316S.S.

Inner Spring, 1.5"

Outer Spring, 2.0"

M

N

*Flush ports at 180 Degrees

*also available in (CAB)

(_) refers to shrink fitted

EQUIVALENT

S0ZU



Alfa Laval Contherm Inc. Flushed Hard Face Seal Assembly

7401319-01

7401267-01

7401268-02

7401862-01

7401388-01

DATA SHEET

HA-CTM - Data Sheet

OEM names, brands, model or part numbers are used solely for reference. Our components are engineered to deliver performance and service life equivalent to or exceeding that of OEM parts when correctly installed and appropriately applied. Alfa Laval® is a registered trademark of its respective company. Pump Seal Supplies Pty Ltd are not representative of, nor affiliated with Alfa Laval®.

CONTHERM™ - FLUSHED SEALS

PRODUCT INFORMATION

PUMP COMPATIBILITY

Suits Alfa Laval® Contherm™ Scraped-Surface Heat Exchangers (SSHE's)



Contherm™ Range:

6x3, 6x6, 6x9, 6x11
