ALFA LAVAL® MECHANICAL SEALS

HA-22

  • 22mm Shaft Seal Range
  • OEM Replacements
  • Outphased Alfa Laval® Pumps

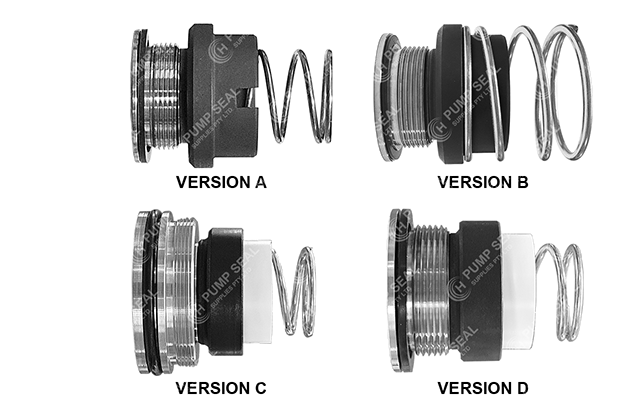

HA-22 is a range of mechanical seals to suit 22mm shafts for various Alfa Laval® pumps; many of which have been outphased. Four configurations (Ver. A, B, C & D) are available.



Version A - "M91" internal-spring rotary with "GA" gasket-mounted threaded seat. Typically suits CM & EM centrifugal pumps.



Version B - "M91B" external-spring rotary with "GA" gasket-mounted threaded seat. Typically suits FM centrifugal pumps.



Version C - "M93" rotary with protective sleeve with "OA" o-ring mounted threaded seat. Typically suits MR166 liquid ring pumps.



Version D - "M93" rotary with protective sleeve with "GA" gasket-mounted threaded seat. Typically suits GM centrifugal pumps.

PARTS

A

B

C

D

E

F

G

H

I

J

Stationary Gasket

Stationary Face / Ring

Rotary Face / Ring

Rotary O-ring

Rotary Washer

Rotary Internal Spring

Rotary Protective Sleeve

Stationary Face / Ring

Rotary External Spring

Stationary O-ring

EQUIVALENT

P07-0220

P07U-0220

Type 91, 91B, 93, 93B

DATA SHEET

HA-22 - Data Sheet
  • Material options

Rotary Face:

Stationary Face:

Elastomer:

Metal Parts:

CAB or SiC

304SS or (SiC)

EPDM

304SS

(_) refers to shrink fitted

OEM names, brands, model or part numbers are used solely for reference. Our components are engineered to deliver performance and service life equivalent to or exceeding that of OEM parts when correctly installed and appropriately applied. Alfa Laval® is a registered trademark of its respective company. Pump Seal Supplies Pty Ltd are not representative of, nor affiliated with Alfa Laval®.

ALFA LAVAL - 22MM SHAFT SEALS

PRODUCT INFORMATION

SEAL CONFIGURATIONS
