JABSCO® (PACKO®) MECHANICAL SEALS

H82/JBHL3

  • Single Seal Kit, Front-Loaded
  • For Jabsco Hy-Line LH3 Series

PARTS

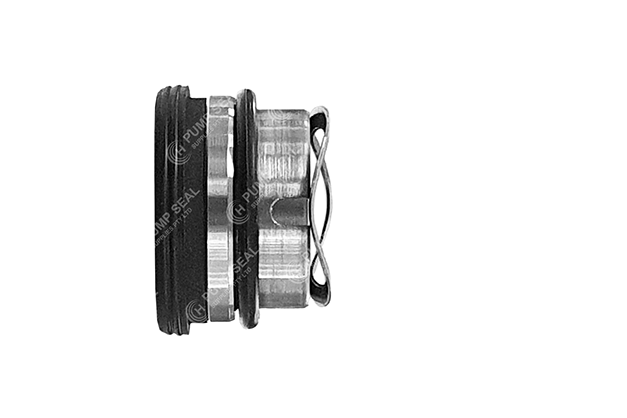

H82/JBHL3 replaces the single mechanical seal face kit fitted to Jabsco Hy-Line LH3 Series Hygienic Rotary Lobe pumps. Seals face are front-loaded with pre-set fitting lengths, allowing installation without removal of the rotor case.



H82/JBHL3 includes OEM elastomer "trim kit" and as well as wave spring.



Each pump requires two identical seals, one for each shaft.

A

B

C

D

E

Rotary Cup

Rotary Face / Ring

Stationary Face / Ring

Stationary O-ring

Wave Spring

DATA SHEET

H82/JBHL3

Data Sheet
  • Material options

Available in three face material combinations, indicated by the 7th position number in the pump’s code:



Code 8: CAB/316SS

Suitable for most general applications. Anti-rotation pins allows use in higher viscosity products.



Code 3: CAB/SiC

Alternative longer seal-life, especially in dry-running or steam sterilisation applications.



Code 2: SiC/SiC

Hard seal faces for abrasive fluids or where shedding of particles into fluid stream must be avoided. Not suitable for CIP steam-purging as seal faces can bind together.



Elastomers: NBR, Viton or EPDM

(_) refers to shrink-fitted

  • Flushed Seal

Parts are also used in flushed seal configuration. Codes: 9, 5 & 7. Flush seal only parts (i.e. lip seal) excluded.

OEM names, brands, model or part numbers are used solely for reference. Our components are engineered to deliver performance and service life equivalent to or exceeding that of OEM parts when correctly installed and appropriately applied. Jabsco® Packo® is a registered trademark of its respective company. Pump Seal Supplies Pty Ltd are not representative of, nor affiliated with Jabsco® Packo®.

JABSCO HY-LINE - LH3 SERIES

PRODUCT INFORMATION

PUMP COMPATIBILITY

Replaces the single mechanical seals in Jabsco Hy-Line LH3 Series Rotary Lobe pumps:



Size 3 (32, 34) Range

Nominal Seal Size: 0.750''

OEM Face Kit: 96080-6007, SP6080-0528, SP6080-0527

OEM Trim Kit: 96080-6008, SP6080-0545, 90080-0619

Wave Spring: X5250-005

15/06/2023 - following acquisition by Verder Group, seals are interchangeable with Packo branded Hy-Line(+) HP / LH Series, and Ultima LU Series Rotary Lobe pumps.
