JABSCO® (PACKO®) MECHANICAL SEALS

H82D/JBHL

  • Double Seal Kit, Front-Loaded
  • Suits Jabsco Hy-Line LH Series
  • Suits Jabsco Ultima LU Series

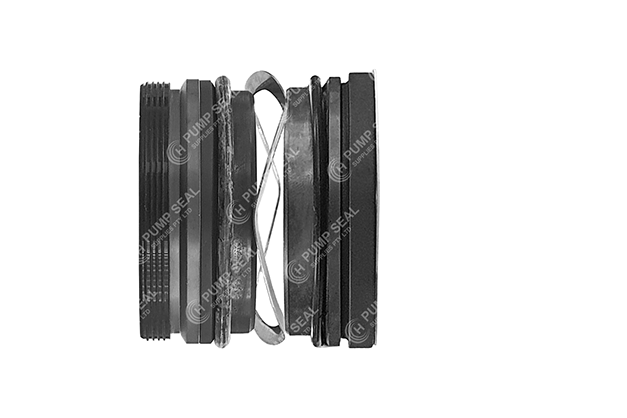

H82D/JBHL replaces the double mechanical seal face kit fitted to Jabsco Hy-Line and Ultima Hygienic Rotary Lobe pumps. It uses the H82/JBHL base as the inboard seal and incorporates a outboard set of seal faces mounted in a dedicated housing, creating a double seal suitable for high-pressure lubricating fluids.



H82D/JBHL includes OEM elastomer "trim kit", wave spring and outboard washer (supplied in PTFE). Excludes drive ring.



Each pump requires two identical seals, one for each shaft.

PARTS

A

B

C

D

E

F

G

H

I

J

Inb. Rotary Cup

Inb. Rotary Face

Inb. Stationary Face

Inb. Stationary O-ring

Wave Spring

Outb. Stationary O-ring

Outb. Stationary SiC Face

Outb. Rotary CAB Face

Outb. Rotary O-ring

Outb. Washer (PTFE)

DATA SHEET

H82D/JBHL

Data Sheet
  • Material options

Outboard seal faces are always SiC/CAB. Available in two inboard face material combinations, indicated by the 7th position number in the pump’s code:



Code 4: SiC/CAB

Suitable for most general applications.



Code 1: SiC/SiC

Hard seal faces for abrasive fluids or where shedding of particles into fluid stream must be avoided.



Elastomers: NBR, Viton or EPDM

OEM names, brands, model or part numbers are used solely for reference. Our components are engineered to deliver performance and service life equivalent to or exceeding that of OEM parts when correctly installed and appropriately applied. Jabsco® Packo® is a registered trademark of its respective company. Pump Seal Supplies Pty Ltd are not representative of, nor affiliated with Jabsco® Packo®.

JABSCO HY-LINE / ULTIMA - LH / LU

PRODUCT INFORMATION

PUMP COMPATIBILITY

Replaces the single mechanical seals in Jabsco Hy-Line & Ultima LH / LU Series Rotary Lobe pumps:



Size 4 (42, 44) Range

Nominal Seal Size: 1.000''

Outboard Kit: 96080-0596

Outboard Trim Kit: 96080-0600, 96080-0602

OEM Face Kit: 96080-0606, SP6080-0595, SP6080-0597

OEM Trim Kit: 96080-0615, SP6080-0598, 90080-0601

Wave Spring: X5250-017



Size 5 (52, 54) Range

Nominal Seal Size: 1.375''

Outboard Face Kit: 96080-0585

Outboard Trim Kit: 96080-0592, 96080-0593

OEM Face Kit: 96080-0594, SP6080-0583, SP6080-0584

OEM Trim Kit: 996080-0613, SP6080-0586, 90080-0587

Wave Spring: X5250-016



Size 6 (62, 64) Range

Nominal Seal Size: 1.875''

Outboard Kit: 96080-0576

Outboard Trim Kit: 96080-0577, 96080-0580

OEM Face Kit: 96080-0608, SP6080-0570, SP6080-0571

OEM Trim Kit: 96080-0611, SP6080-0572, 90080-0578

Wave Spring: X5250-015



Size 7 (72, 74, 76) Range

Nominal Seal Size: 2.125''

Outboard Kit: 96080-6030

Outboard Trim Kit: 96080-6032, 96080-6012

OEM Face Kit: 96080-6020, SP6080-6009, SP6080-6011

OEM Trim Kit: 96080-6022, SP6080-6028, 90080-6015

Wave Spring: X5250-019

15/06/2023 - following acquisition by Verder Group, seals are interchangeable with Packo branded Hy-Line(+) HP / LH Series, and Ultima LU Series Rotary Lobe pumps.
