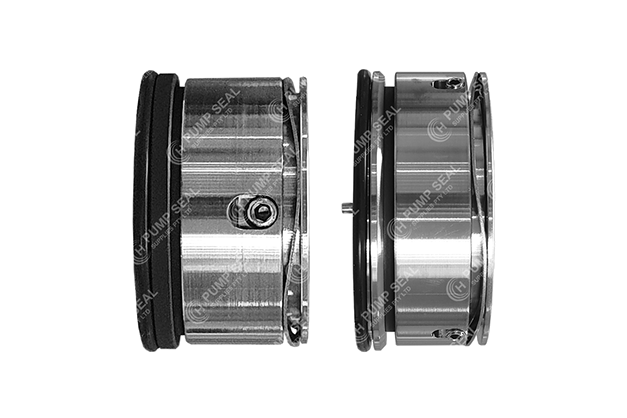

JABSCO® (PACKO®) MECHANICAL SEALS

H80/JB24

  • O-ring, Wave-Spring Pusher
  • Compact, Bi-directional
  • Suits Jabsco Pureflo 24 Series

H80/JB24 replaces the single mechanical seals fitted to Jabsco - Pureflo 24 Series Rotary Lobe pumps. Seals are mounted externally away from the product, into the rear of the rotor case.



The seal faces are energised by a wave spring, with set screws in the rotary component allowing bi-directional rotation.



Each pump requires two identical seals, one for each shaft.

PARTS

A

B

C

D

E

F

G

H

I

J

Stationary Pin

Stationary O-ring

Stationary Face / Ring

Rotary Face (Shrink-fit)

Rotary Face (Solid)

Rotary Holder

Rotary O-ring

Rotary Set Screws

Rotary Drive Collar

Rotary Wave-Spring

DATA SHEET

H80/JB24 Data Sheet
  • Material options

Available in three face material combinations, indicated by the 7th position number in the pump’s code:



Code 8: (CAB)/316SS, pinned seat

Suitable for most general applications. Anti-rotation pin allows use in higher viscosity products.



Code 3: 316SS/CAB, unpinned seat

Alternative cost-effective option for clean fluids. Unpinned seat not suitable for higher viscosity products.



Code 2: TC/TC, pinned seat

Hard seal faces for abrasive fluids or where shedding of particles into fluid stream must be avoided. Not suitable for CIP steam-purging as seal faces can bind together.



Elastomers: NBR, Viton or EPDM

(_) refers to shrink-fitted

  • Flushed Seal

Parts are also used in flushed seal configuration. Codes: 9, 5 & 7. Flush seal only parts (i.e. lip seal) excluded.

OEM names, brands, model or part numbers are used solely for reference. Our components are engineered to deliver performance and service life equivalent to or exceeding that of OEM parts when correctly installed and appropriately applied. Jabsco® Packo® is a registered trademark of its respective company. Pump Seal Supplies Pty Ltd are not representative of, nor affiliated with Jabsco® Packo®.

JABSCO PUREFLO - 24 SERIES

PRODUCT INFORMATION

PUMP COMPATIBILITY

Replaces the single mechanical seals in Jabsco Pureflo 24 Series Rotary Lobe pumps:



S2 Range

Seal Shaft Size: 16mm

Base Models: 24950-

OEM Seal No.: SP6080-0468, SP6080-0434



A1, A2 Range

Seal Shaft Size: 30mm

Base Models: 24000-, 26000-, 24050-, 26050-

OEM Seal No.: SP6080-0422, SP6080-0381, SP6080-0389



B1, B2 Range

Seal Shaft Size: 38mm

Base Models: 24100-, 26100-, 24150-, 26150-

OEM Seal No.: SP6080-0423, SP6080-0382, SP6080-0390



C1, C2 Range

Seal Shaft Size: 55mm

Base Models: 24200-, 26200-, 24250-, 26250-

OEM Seal No.: SP6080-0424, SP6080-0383, SP6080-0391



D1, D2 Range

Seal Shaft Size: 63mm

Base Models: 24300-, 26300-, 24350-,

OEM Seal No.: SP6080-0425, SP6080-0384, SP6080-0392
