ALFA LAVAL® MECHANICAL SEALS

H80/IBEX

  • Stationary-Based Design
  • OEM Replacement
  • Outphased IBEX® - MOG
  • Outphased Alfa Laval® - ALP

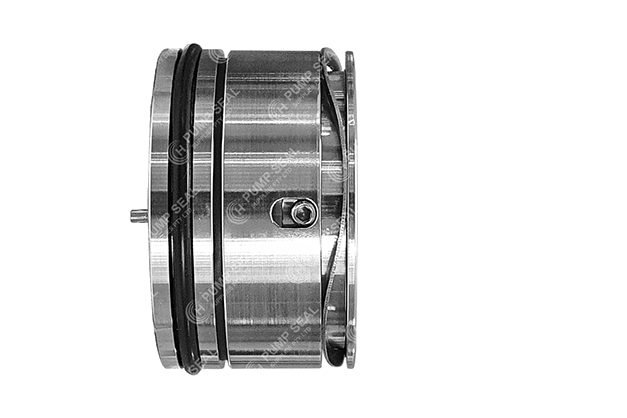

H80/IBEX replaces the mechanical seals found in older / outphased Alfa Laval® IBEX® MOG & ALP Rotary Lobe pumps, primarily for the UK / European market.



Design is based on industry standard "Type 80" design with pump-specific special stationary with in-built pin for anti-rotation.



Each pump requires two identical seals, one for each shaft.

PARTS

A

B

C

D

E

F

G

H

Stationary Pin

Stationary O-ring

Stationary Face / Ring

Rotary Face / Ring

Rotary O-ring

Rotary Set Screws

Rotary Drive Collar

Rotary Wave Spring

EQUIVALENT

W09U

Type 1655

DATA SHEET

  • Material options

Standard Seal Faces*:

Hard Face Option*:

Elastomers:

Metal Parts:

316SS/CAB

SiC or TC

EP or V

316S.S.

H80/IBEX - Data Sheet

*subject to solid & shrink-fitted face

material stock availability

OEM names, brands, model or part numbers are used solely for reference. Our components are engineered to deliver performance and service life equivalent to or exceeding that of OEM parts when correctly installed and appropriately applied. Alfa Laval® is a registered trademark of its respective company. Pump Seal Supplies Pty Ltd are not representative of, nor affiliated with Alfa Laval®.

IBEX® - MOG & ALP LOBE PUMPS

PRODUCT INFORMATION

DIMENSIONS

Dimensions refer to installed length, not 'free' length:

PUMP COMPATIBILITY

Replaces the mechanical seals in Alfa Laval® pumps:



IBEX® - MOG Range:

MOG 600 (601-610), MOG 1000 (1015-1125), MOG 2000 (2020-2130), MOG 3000 (3040-3160)



ALP Range:

ALP 600 (601-610), ALP 1000 (1015-1125), ALP 2000 (2020-2130), ALP 3000 (3040-3160)
