WATER PUMP SEALS
H68
- Stationary-based Design
- Compact
- Cavity Seal
H68 is stationary mounted and press-fitted into the pump housing. The face of the seal tracks against either the back of the pump’s impeller or a seat which is mounted on and rotates with the shaft.
It is recommended for high speed rotation and since it is non-shaft sealing, shaft material and surface finishing is not critical.
- Operating conditions
PARTS
A
B
C
D
E
F
Seat Cup
Rotary Face
Stationary Face
Metal Collar / Head
Rubber Bellows
Spring
EQUIVALENT
Type 7
Type 6A
B03, B03U
Type 70, Type 75
Pac-Seal 170
BT-A2
Temperature:
Pressure:
Speed:
-40°C to 150°C
60 psig / 4 bar g
up to 8m/s, 1560 fpm
DATA SHEET
- Material options
Rotary Face:
Stationary Face:
Elastomer:
Metal Parts
CAB, SiC
CER, SiC
N, V
304 or 316 S.S.
H68 - Data Sheet
(updated 2024)
TYPE 6A / TYPE 7
PRODUCT INFORMATION
DIMENSIONS
D1 = Shaft Size
D7 = Rotary OD
L4 = Rotary Thickness
L2 = Compressed Length
D3 = Bore / Cavity
L1 = Head Depth

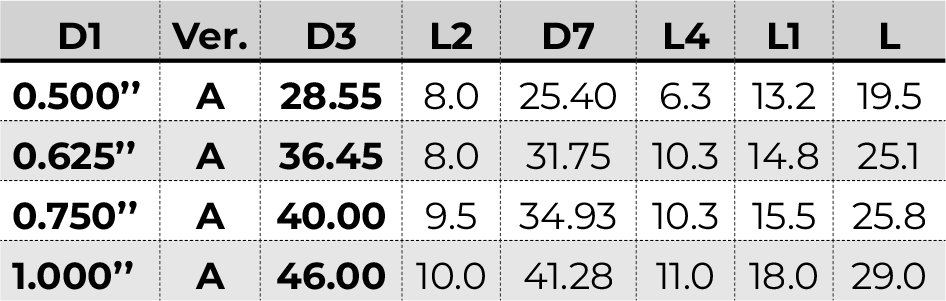

▶ Standard Imperial Dimensions

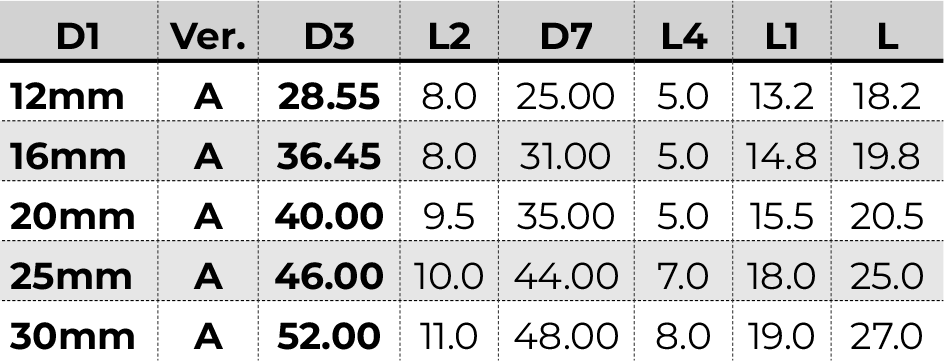

▶ Standard Metric Dimensions

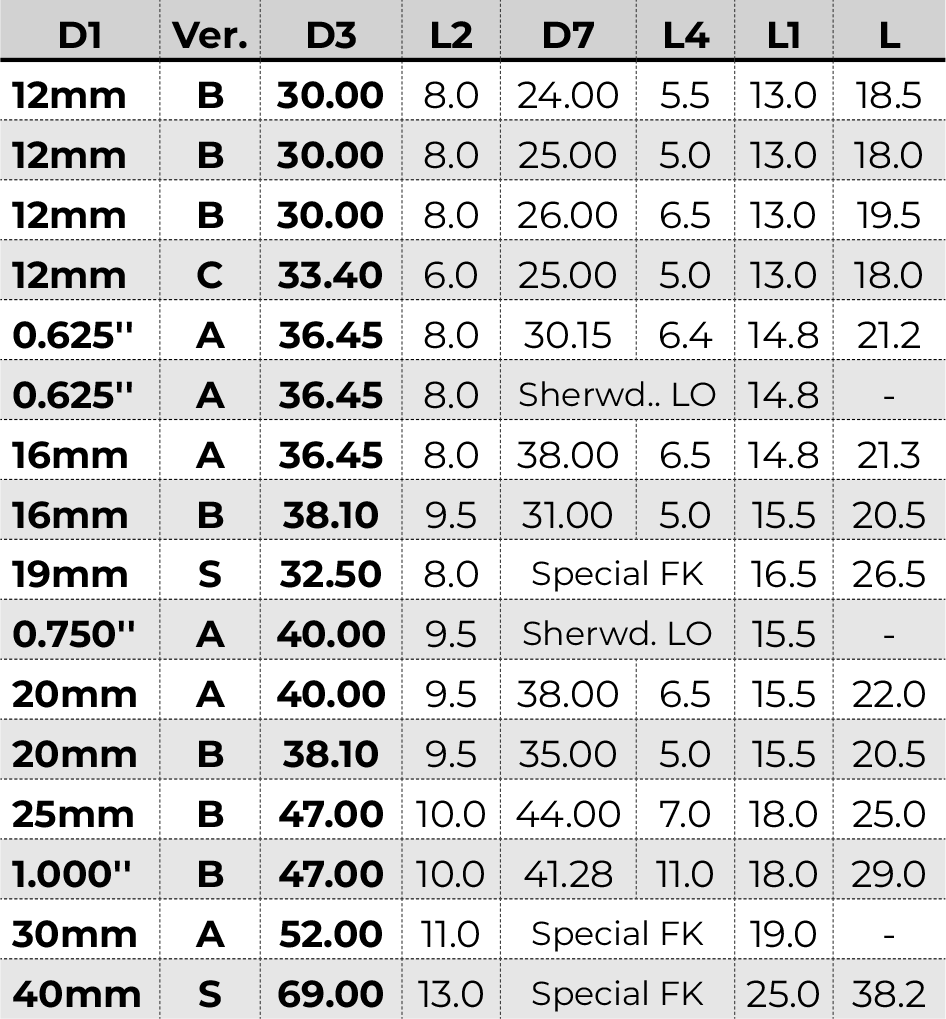

▶ Alternative Dimensions
