MULTI-SPRING SEALS

H58U / H59U

  • O-ring, Multi-Spring Pusher
  • To DIN EN 12756 Standards
  • Unbalanced
  • Bi-directional

H58U is a DIN EN 12756 compliant

mechanical seal for metric shafts,

based on the industry standard "Type

58U & 59U" designs. The multi-spring

design ensures even face pressure,

minimising face wear whilst also compensating for any shaft misalignment.



Originally designed to use a PTFE

wedge (H59U) as the secondary seal, improvements in o-ring materials have made the o-ring version (H58U) more common, due to ease of access and replaceability.



The multi-spring holes are ported to the rear, reducing the risk of spring

clogging from product build-up.



An additional rear pin hole allows two

units to be mounted back-to-back,

forming a double seal.

PARTS

A

B

C

D

E

F

G

H

I

J

K

Stationary O-ring

Stationary Face / Ring

Rotary Face / Ring

Rotary Snap Ring

Rotary O-ring

Rotary Washer

Rotary Multi-Springs

Rotary Housing

Stationary PTFE (optional)

H59U - PTFE wedge

Rotary Set Screws

SEAT OPTIONS

BP

BO

BM

standard, with slot

no tail / slot

cup-mounted

EQUIVALENT

T58U / T59U

M03SU / M03U

1659S / 1659

BT-C5

BT-C56.KU

RB858 / RB859

  • Operating conditions¹

DATA SHEET

H58U - Data Sheet

Temperature:

Pressure:

Speed:

-30°C to +260°C

< 17 bar, 245 psi, 1.7 MPa

< 25m/s, 5000 fpm

rpm < 1500000/(3.14 x D1)

¹Guide-values only (due to diversity of possible applications). Enquire for specific-use cases. Maximum values of each parameter cannot be applied together.

  • Material options

Rotary Face:

Stationary Face:

Elastomer:

Metal Parts:

CAB, A1 or SiC

SiC

N, V or EP

304S.S.

TYPE 58U / 59U

PRODUCT INFORMATION

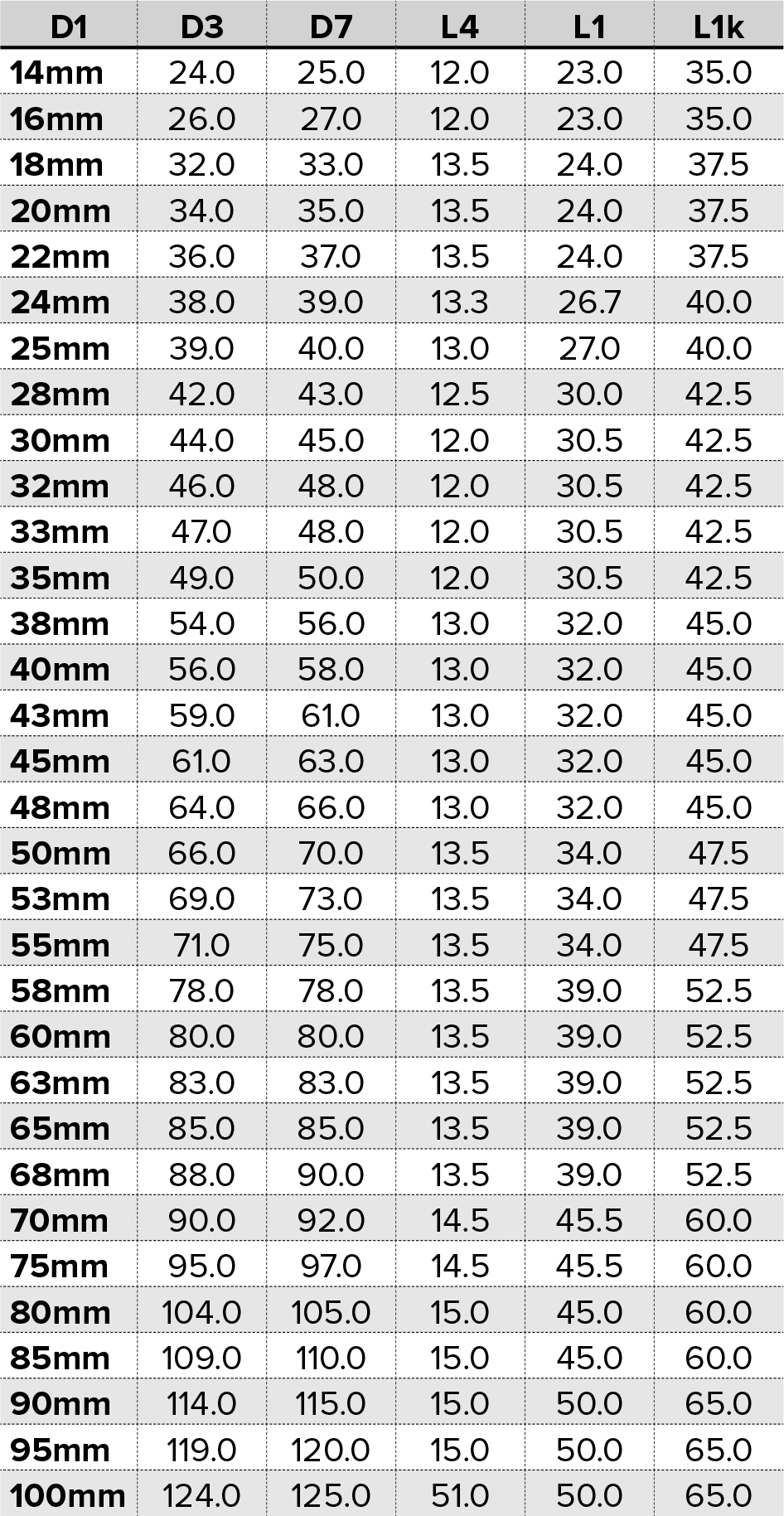

DIMENSIONS

Dimensions refer to installed length, not 'free' length:
