ABS® (SULZER®) MECHANICAL SEALS

H55/A

  • Enclosed Rubber Bellows Seal
  • Suits ABS® / Sulzer® Pumps

PARTS

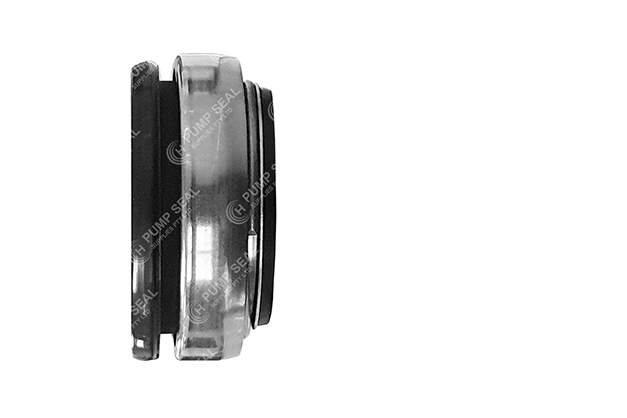

H55/A are a range of compact enclosed  rubber bellows seals with dimensions specifically intended for the upper oil chamber seal in Sulzer® (formerly ABS®) submersible pumps.

  • Operating conditions¹

Temperature:

Pressure:

Speed:

-30°C to +200°C

< 6 bar, 87 psi, 0.6 MPa

< 12m/s, 2400 fpm

rpm < 720000/(3.14 x D1)

A

B

C

D

E

F

G

H

Stationary Cup

Stationary Face / Ring

Rotary Face / Ring

Rotary Holder

Rotary Rubber Bellows

Rotary Locking Ring

Rotary Spring

Rotary Ring Cap

EQUIVALENT

C18

¹Guide-values only (due to diversity of possible applications). Enquire for specific-use cases. Maximum values of each parameter cannot be applied together.

DATA SHEET

  • Material options

Rotary Face:

Stationary Face:

Elastomer:

Metal Parts:

SiC or CAB

SiC or CER

V or N

304S.S.

H55/A - Data Sheet

OEM names, brands, model or part numbers are used solely for reference. Our components are engineered to deliver performance and service life equivalent to or exceeding that of OEM parts when correctly installed and appropriately applied. ABS® Sulzer® is a registered trademark of its respective company. Pump Seal Supplies Pty Ltd are not representative of, nor affiliated with ABS® Sulzer®.

ABS® SULZER® - ENCLOSED BELLOWS

PRODUCT INFORMATION

DIMENSIONS

Dimensions refer to installed length, not 'free' length:
