DIAPHRAGM SEALS

H2US

  • Diaphragm w/ Drive Band
  • To US Imperial Dimensions
  • Short Working Length
  • Bi-directional

H2US is a mechanical seal for imperial shafts, based on the historical industry "Type 2" design. It is commonly specified in confined space requirements with limited seal chamber depths.



A rubber diaphragm is secured to the shaft with a drive band, which serves as both a secondary seal and positive torque transmission.



Mechanical compression on the spring-cap is typically delivered by a shoulder in the shaft / sleeve or setting collar (available separately).

PARTS

A

B

C

D

E

F

G

H

I

Stationary Cup

Stationary Face / Ring

Rotary Face / Ring

Rotary Disk

Rotary Retainer

Rotary Diaphragm

Rotary Drive Band

Spring

Spring Cap

SEAT OPTIONS

CM

OG

N (G50)

W

standard

o-ring

Euro cup

Euro o-ring

EQUIVALENT

  • Operating conditions¹

Temperature:

Pressure:

Speed:

-40°C to +200°C

< 12.5 bar, 180 psi, 1.2 MPa

< 18m/s, 3500 fpm

rpm < 1080000/(79.8 x D1)

Type 2

43 CU Short

P04U

110 / P110

P340

RB802

¹Guide-values only (due to diversity of possible applications). Enquire for specific-use cases. Maximum values of each parameter cannot be applied together.

DATA SHEET

  • Material options

Rotary Face:

Stationary Face:

Elastomer:

Metal Parts:

CAB or SiC

CER, SiC or TC

N or V

304S.S.

H2US - Data Sheet

TYPE 2

PRODUCT INFORMATION

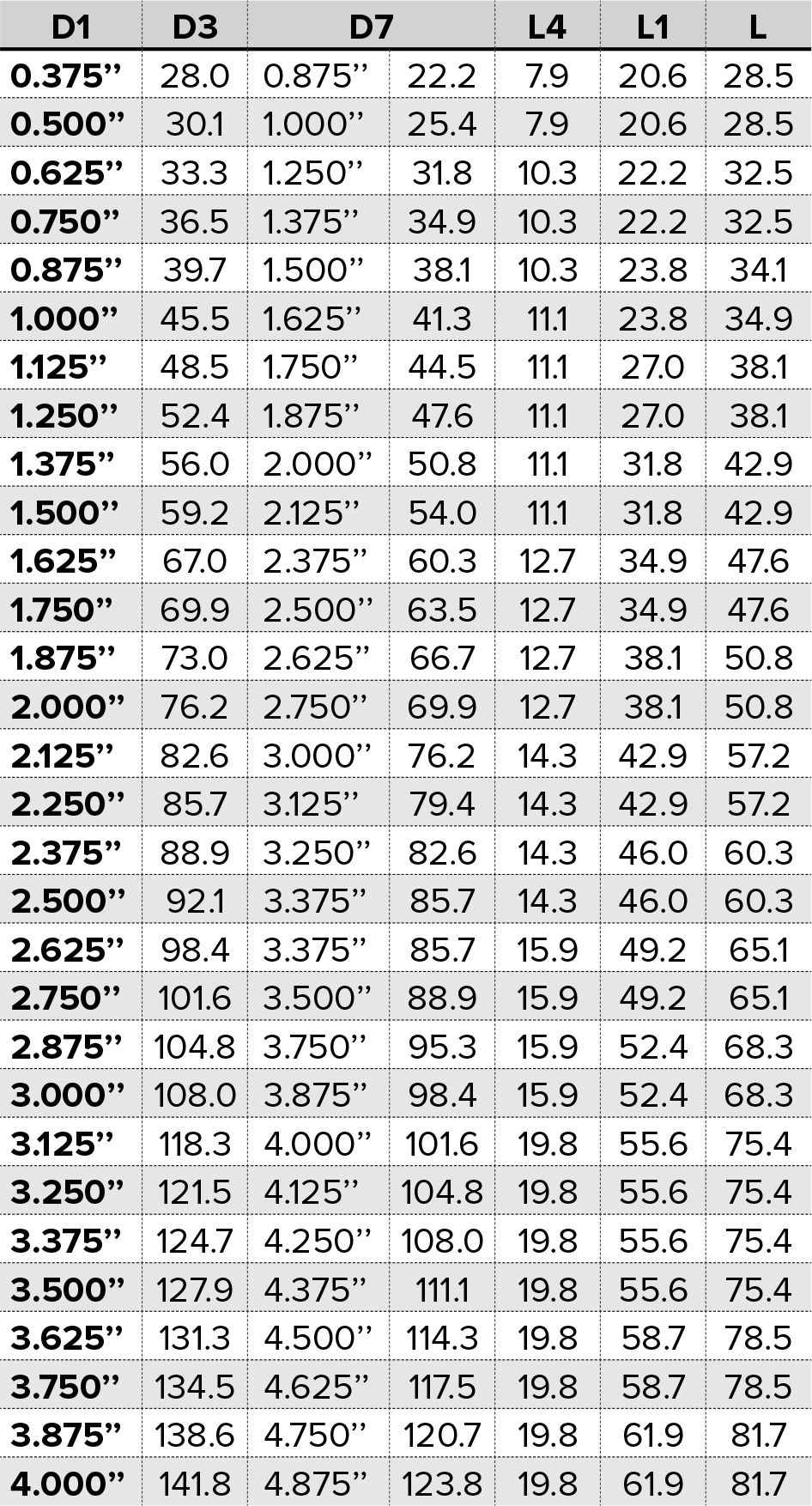

DIMENSIONS

Dimensions refer to installed length, not 'free' length:
