DIAPHRAGM SEALS

H2UK

  • Diaphragm w/ Drive Band
  • To UK Imperial Dimensions
  • Long Working Length
  • Bi-directional

H2UK is a mechanical seal for imperial shafts, based on the historical industry "Type 2UK" design. It uses the same components as H2US, but on certain sizes an additional spacer is needed to achieve the correct working length.



A rubber diaphragm is secured to the shaft with a drive band, which serves as both a secondary seal and positive torque transmission.



Mechanical compression on the spring is typically delivered by a shoulder in the shaft / sleeve or setting collar (available separately).

  • Operating conditions¹

Temperature:

Pressure:

Speed:

-40°C to +200°C

< 12.5 bar, 180 psi, 1.2 MPa

< 18m/s, 3500 fpm

rpm < 1080000/(79.8 x D1)

PARTS

A

B

C

D

E

F

G

H

I

Stationary Cup

Stationary Face / Ring

Rotary Face / Ring

Rotary Disk

Rotary Retainer

Rotary Diaphragm

Rotary Drive Band

Spring

Spring Cap

SEAT OPTIONS

N (G50)

W

standard

Euro o-ring

EQUIVALENT

Type 2UK

43 CE Short

P02U

MG920/d1-G50

52

200 / P200

320

RB803

¹Guide-values only (due to diversity of possible applications). Enquire for specific-use cases. Maximum values of each parameter cannot be applied together.

DATA SHEET

  • Material options

Rotary Face:

Stationary Face:

Elastomer:

Metal Parts:

CAB or SiC

CER, SiC or TC

N or V

304S.S.

H2UK - Data Sheet

TYPE 2UK

PRODUCT INFORMATION

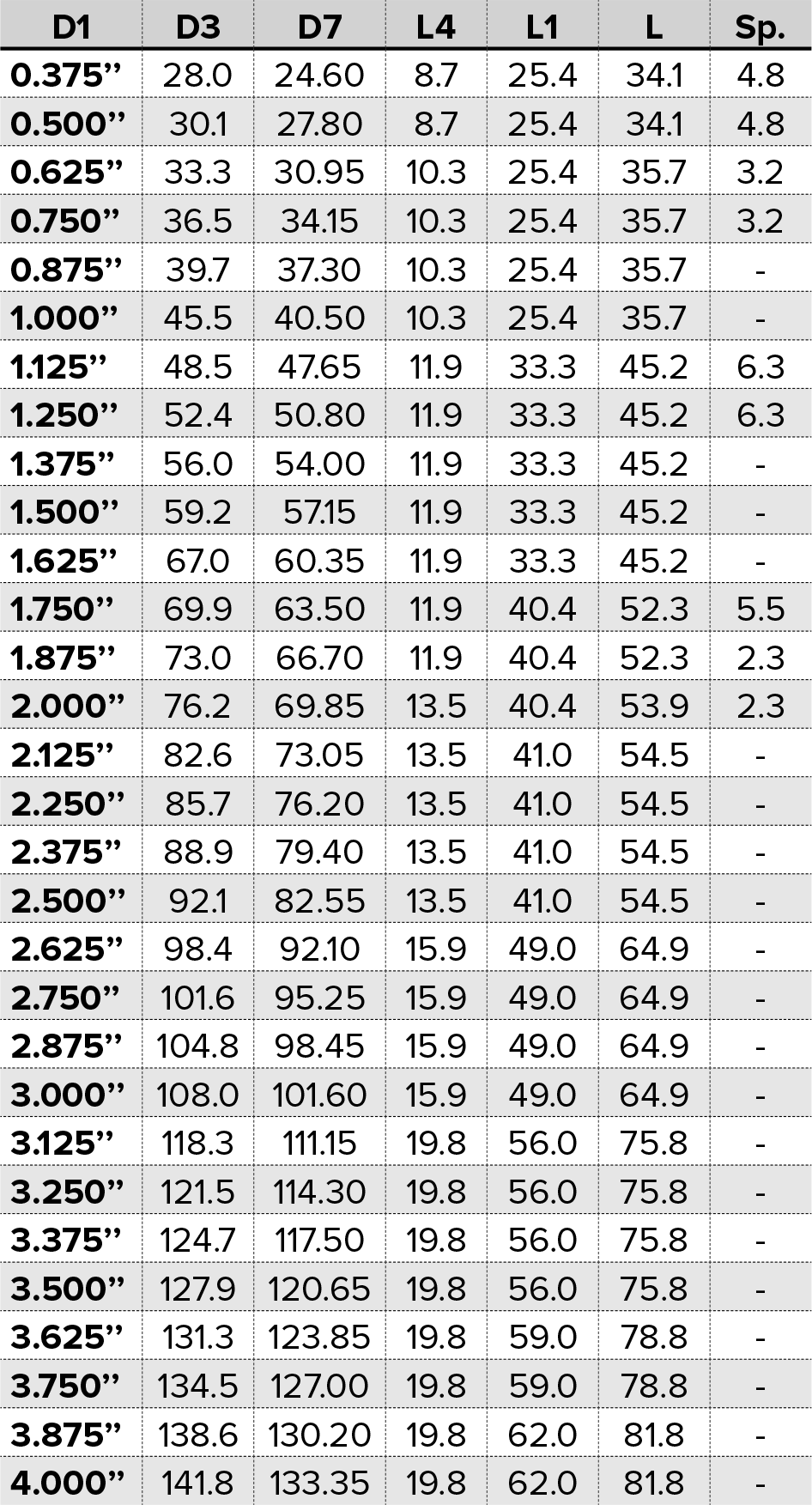

DIMENSIONS

Dimensions refer to installed length, not 'free' length:
