DIAPHRAGM SEALS

H21DIN

  • Diaphragm w/ Drive Band
  • To DIN EN 12756 Standards
  • General purpose
  • Bi-directional

H21 is a DIN EN 12756–compliant  mechanical seal for metric shafts, based on the industry standard "Type 21" design. It is widely used for its low cost / high efficiency ratio.



A rubber diaphragm is secured to the shaft with a drive band, which serves as both a secondary seal and positive torque element.



Mechanical compression on the spring-cap is typically delivered by a shoulder in the shaft / sleeve, threaded impeller or setting collar (available separately)

  • Operating conditions¹

Temperature:

Pressure:

Speed:

-30°C to +200°C

< 10 bar, 145 psi, 1 MPa

< 13m/s, 2500 fpm

rpm < 780000/(3.14 x D1)

¹Guide-values only (due to diversity of possible applications). Enquire for specific-use cases. Maximum values of each parameter cannot be applied together.

PARTS

A

B

C

D

E

F

G

H

Stationary Cup

Stationary Face / Ring

Rotary Face / Ring

Rotary Retainer

Rotary Diaphragm

Rotary Drive Band

Spring

Spring Cap

SEAT OPTIONS

DCM

BO

BP

standard

o-ring, no slot

o-ring with slot

EQUIVALENT

T521

043-E

43 DIN

P03

Type 24

MG912/d1-G60

52

240 / P240

RB824

  • Material options

DATA SHEET

Rotary Face:

Stationary Face:

Elastomer:

Metal Parts:

CAB, SiC or TC

CER, SiC or TC

N, V or EP

304S.S.

H21DIN - Data Sheet

"Low-profile" Version:

H21T - Data Sheet

TYPE 21 DIN

PRODUCT INFORMATION

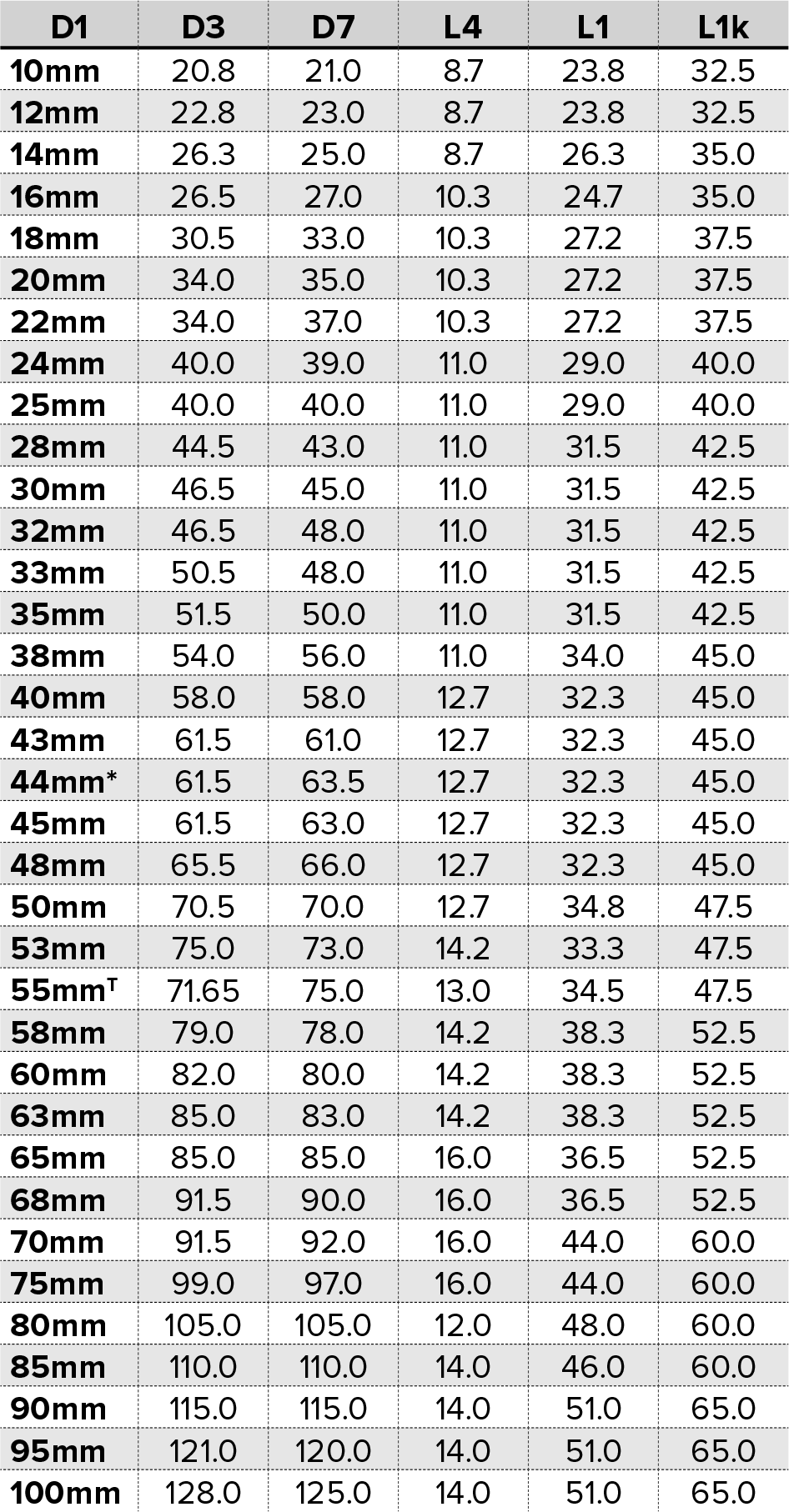

DIMENSIONS

Dimensions refer to installed length, not 'free' length:

*non-DIN EN 12756 size

refer H21T

T
