DIAPHRAGM SEALS

H1US

  • Diaphragm w/ Drive Band
  • To US Imperial Dimensions
  • Long Working Length
  • Bi-directional

H1US is a mechanical seal for imperial shafts, based on the historical industry "Type 1" design. It's narrower profile and longer working length suited narrower stuffing boxes originally for gland packing.



A rubber diaphragm is secured to the

shaft with a drive band, which serves

as both a secondary seal and positive

torque transmission.



Mechanical compression on the

spring-cap is typically delivered by a

shoulder in the shaft / sleeve or setting collar (available separately)

PARTS

A

B

C

D

E

F

G

H

I

Stationary Cup

Stationary Face / Ring

Rotary Face / Ring

Rotary Disk

Rotary Retainer

Rotary Diaphragm

Rotary Drive Band

Spring

Spring Cap

SEAT OPTIONS

CM

OG

N (G50)

W

standard

o-ring

Euro cup

Euro o-ring

EQUIVALENT

  • Operating conditions¹

Temperature:

Pressure:

Speed:

-40°C to +200°C

< 12.5 bar, 180 psi, 1.2 MPa

< 18m/s, 3500 fpm

rpm < 1080000/(79.8 x D1)

¹Guide-values only (due to diversity of possible applications). Enquire for specific-use cases. Maximum values of each parameter cannot be applied together.

Type 1

43 CU Long

P05U

MG901/d1

-G55

220 / P220

P350

RB801

  • Material options

DATA SHEET

Rotary Face:

Stationary Face:

Elastomer:

Metal Parts:

CAB or SiC

CER, SiC or TC

N or V

304S.S.

H1US - Data Sheet

TYPE 1

PRODUCT INFORMATION

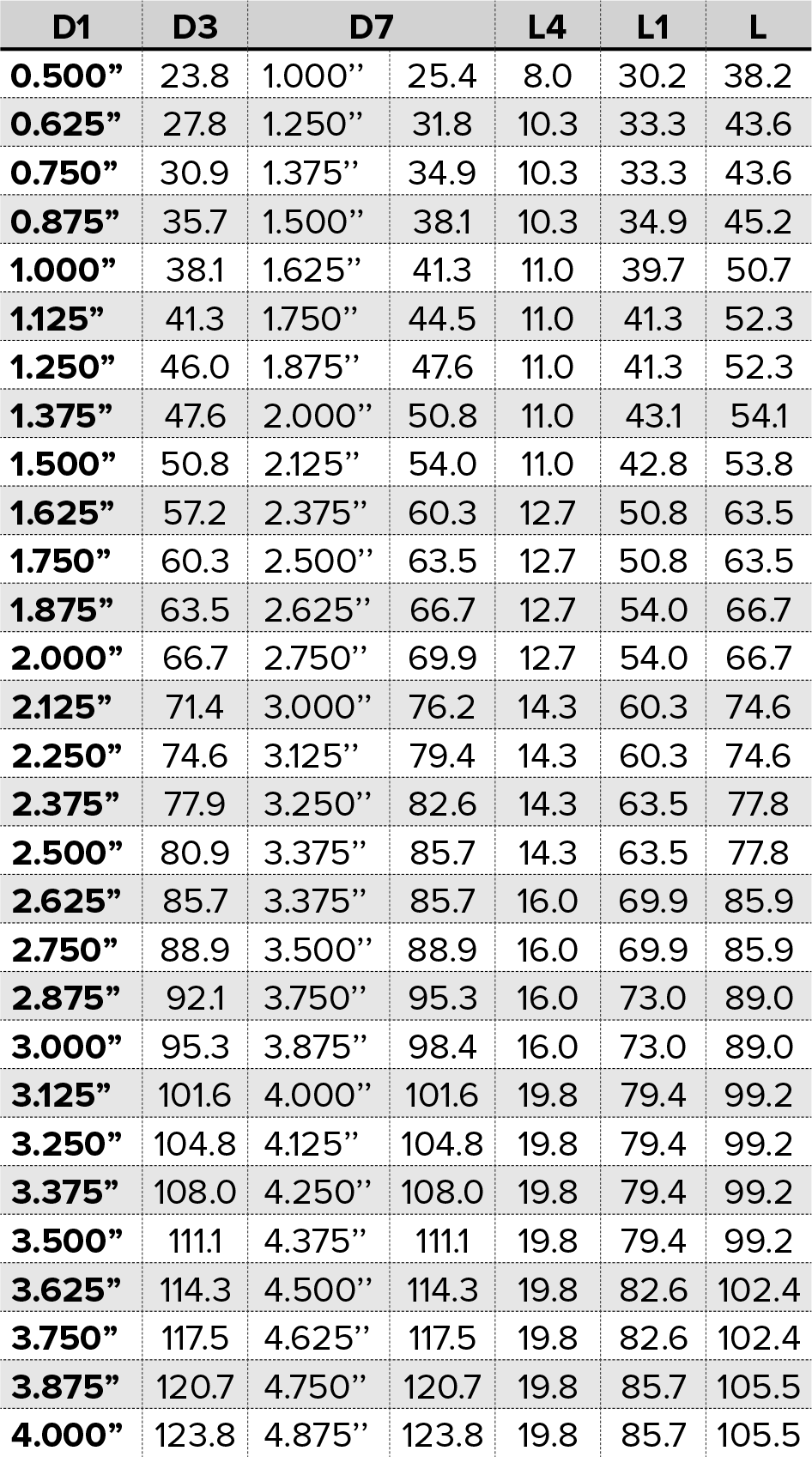

DIMENSIONS

Dimensions refer to installed length, not 'free' length:
