DIAPHRAGM SEALS
H1UK
- Suits UK Euro imperial sizes
- Long working length
- Type 1 rotary + spacer
H1UK is designed to suit Euro (UK) imperial installation dimensions including the N seat cavity.
- Operating conditions
Temperature:
Pressure:
Speed:
-40°C to 200°C
up to 12.5 bar, 180 psi
up to 18m/s, 3500 fpm
PARTS
Seat Cup
Seat (N Standard)
Rotary Face
Retainer
Rubber Diaphragm
Drive Band
Metal Spacer
Spring
A
B
C
D
E
F
G
H
EQUIVALENT
- Material options
Rotary Face:
Stationary Face:
Elastomer:
Metal Parts
CAB, SiC
CER, SiC, TC
N, V
Stainless Steel
43 CE Long
Type 1A
P01U
Type A1*
MG910
STANDARD SEAT
N, G50
W
Euro imperial cup seat
Euro imperial o-ring seat
DATA SHEET
H1UK - Data Sheet
TYPE 1A - UK
PRODUCT INFORMATION

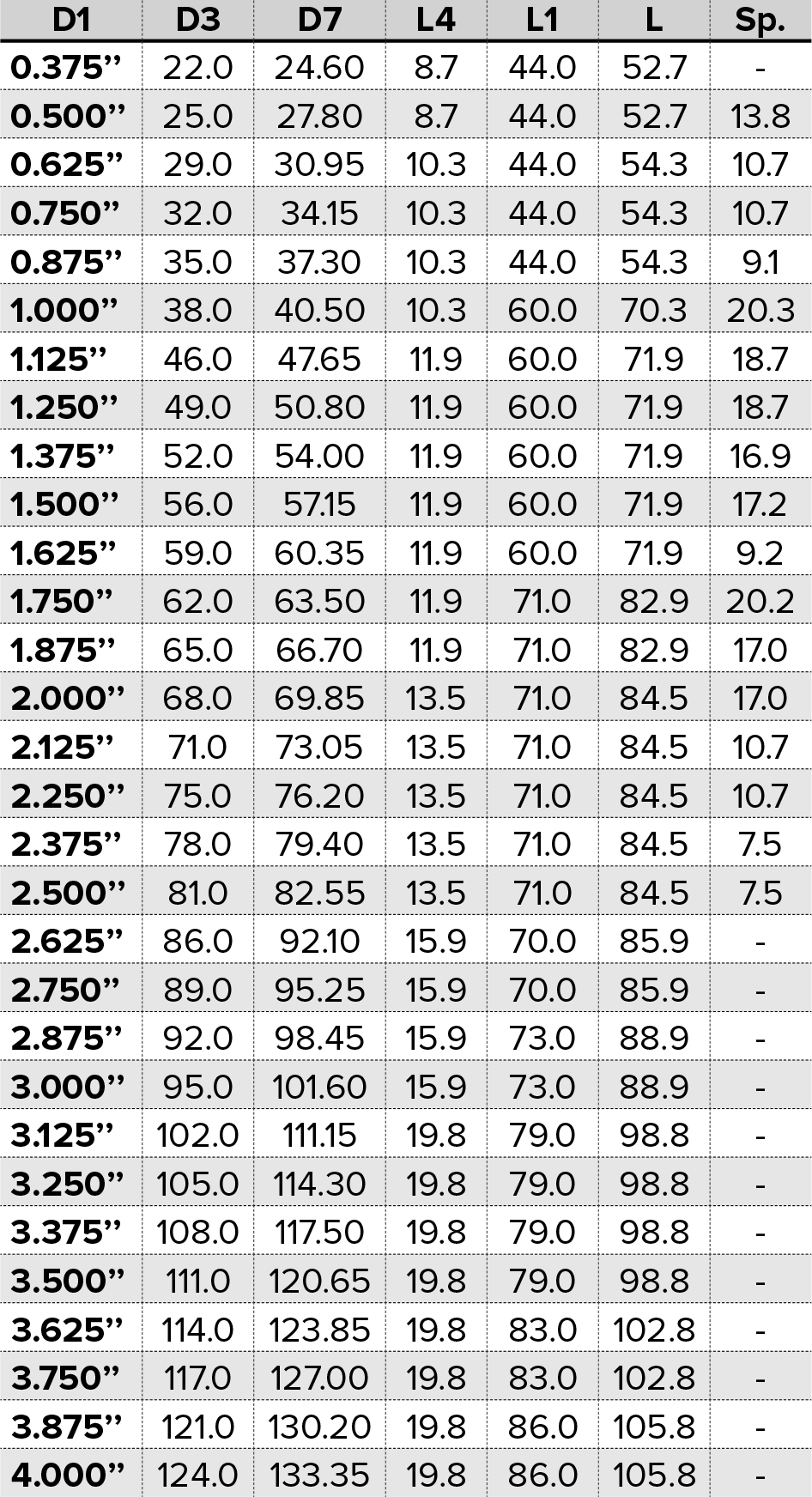

DIMENSIONS
note: dimensions refer to installed length, not 'free' length
