EXTERNAL SEALS

H10T / H10R

  • Externally Mounted
  • PTFE Bellows, Compact
  • Multi-Spring Pusher
  • Imperial & Metric Sizes
  • Suits Chemicals & Corrosives

H10T & H10R are mechanical seals designed to be mounted externally, such that no metal parts are in contact with the process fluid. This makes it ideal for use with highly acidic or chemically corrosive media.



The bellows is extended to allow a two-piece split clamp to tighten and drive the rotary.



The seal is based on the "10T & 10R" designs, where H10T PTFE face is non-replaceable, and H10R seal face is replaceable in hard materials.

PARTS

AB

C

D

E

F

G

H

I

J

K

Stationary PTFE Gasket

Stationary Face / Ring

Stationary PTFE Gasket

Rotary Face / Ring

Rotary PTFE Holder

Rotary PTFE Bellows

Rotary PTFE Cover

Rotary Multi-Springs

Rotary Washer (Bakelite)

Rotary Split Clamp

Rotary Cap Screws

SEAT OPTIONS

V10

U

standard

alternative, flushed

EQUIVALENT

  • Operating conditions¹

10T / 10R

RB853 / RB854

Temperature:

Pressure:

Speed:

-45°C to +120°C

< 13 bar, 185 psi, 1.3 MPa

< 16m/s, 3150 fpm

rpm < 960000/(79.8 x D1 inch)

rpm < 960000/(3.14 x D1 mm)

¹Guide-values only (due to diversity of possible applications). Enquire for specific-use cases. Maximum values of each parameter cannot be applied together.

  • H10T - Materials

Rotary Face:

Stationary Face:

Metal Parts:

All Other Parts:

Glass-filled PTFE

CER

304SS

Virgin PTFE

  • H10R- Materials

Rotary Face:

Stationary Face:

Metal Parts:

All Other Parts:

SiC

SiC

304S.S.

Virgin PTFE

TYPE 10T / 10R

PRODUCT INFORMATION

DIMENSIONS

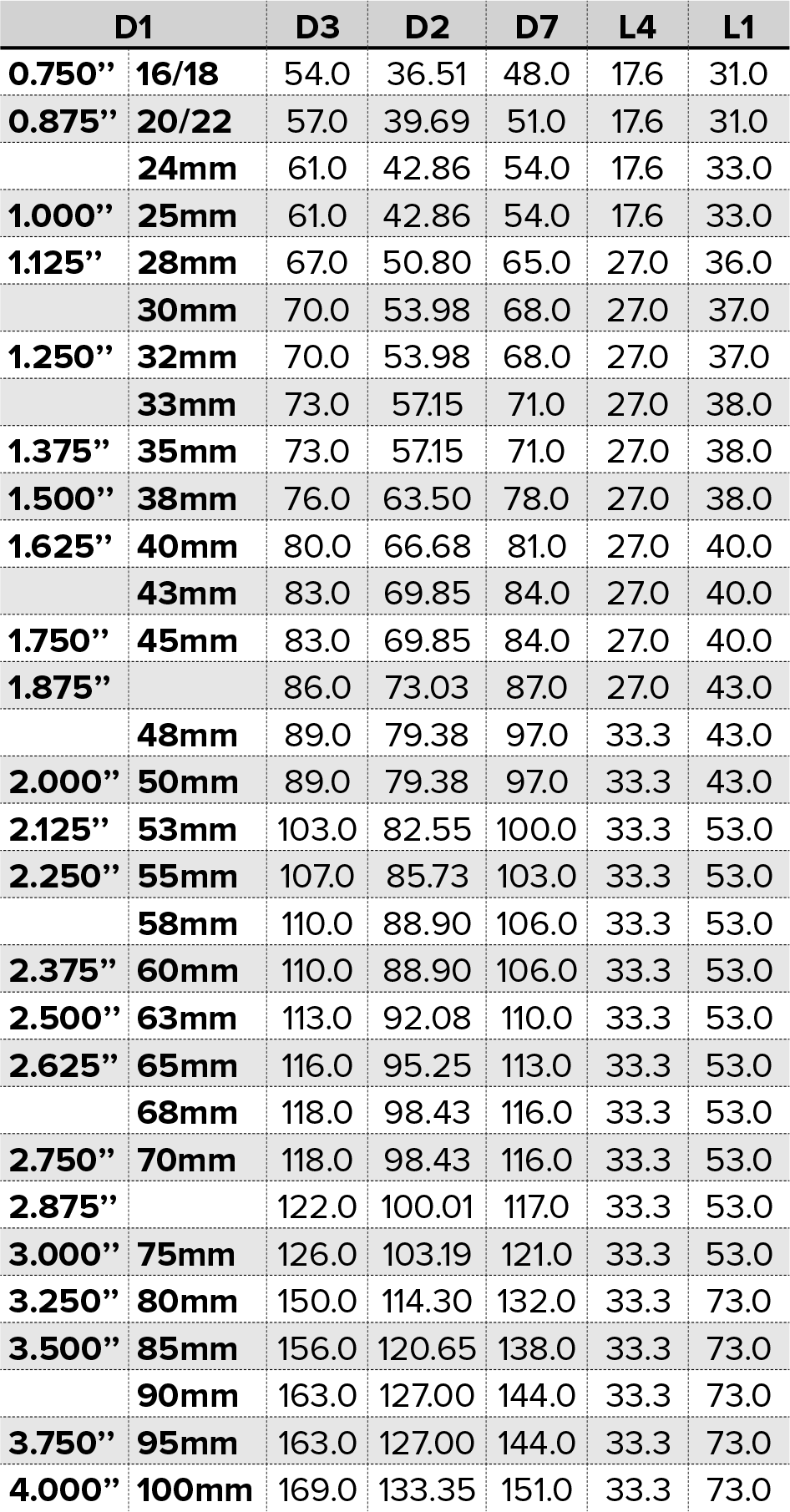

Dimensions refer to installed length, not 'free' length:
