PARALLEL-SPRING SEALS

H103U

  • O-Ring, Parallel-Spring Driver
  • To PRC JB/T 1472 Standards
  • Unbalanced
  • Clockwise Shaft Rotation Only

H103U is a JB/T 1472 compliant unbalanced mechanical seal for metric shafts, based on the Chinese Machinery Industry Standard "Type 103".



A right-hand wound parallel spring is legged 90° axially at the end coil ("AX" Spring), slotting into a collar which drives the seal (*excluded*). Due to coil direction, it is only usable for clockwise-rotating shafts.



An alternative ("PD" Spring) is available which is legged 90° perpendicularly, for other drive collars.



The seal faces are available standard with solid (monolithic) faces. Alternative shrink-fitted faces are available.

PARTS

A

B

C

D

E

F

G

H

Stationary O-ring

Stationary Face / Ring

Rotary Face / Ring

Rotary O-ring

Rotary Holder

Rotary "AX" Spring

(excluded) Drive Collar

Rotary "PD" Spring

SEAT OPTIONS

S18

standard

EQUIVALENT

JB/T 1472 - Type 103

DATA SHEET

H103U - Data Sheet
  • Operating conditions¹

Temperature:

Pressure:

Speed:

-20°C to +200°C

< 8 bar, 116 psi, 0.8 MPa

< 13m/s, 2560 fpm

rpm < 780000/(3.14 x D1)

¹Guide-values only (due to diversity of possible applications). Enquire for specific-use cases. Maximum values of each parameter cannot be applied together.

  • Material options

Rotary Face:

Stationary Face:

Elastomer:

Metal Parts:

SiC or (TC)

CAB or (TC)

N, V or EP

304S.S.

TYPE 103

PRODUCT INFORMATION

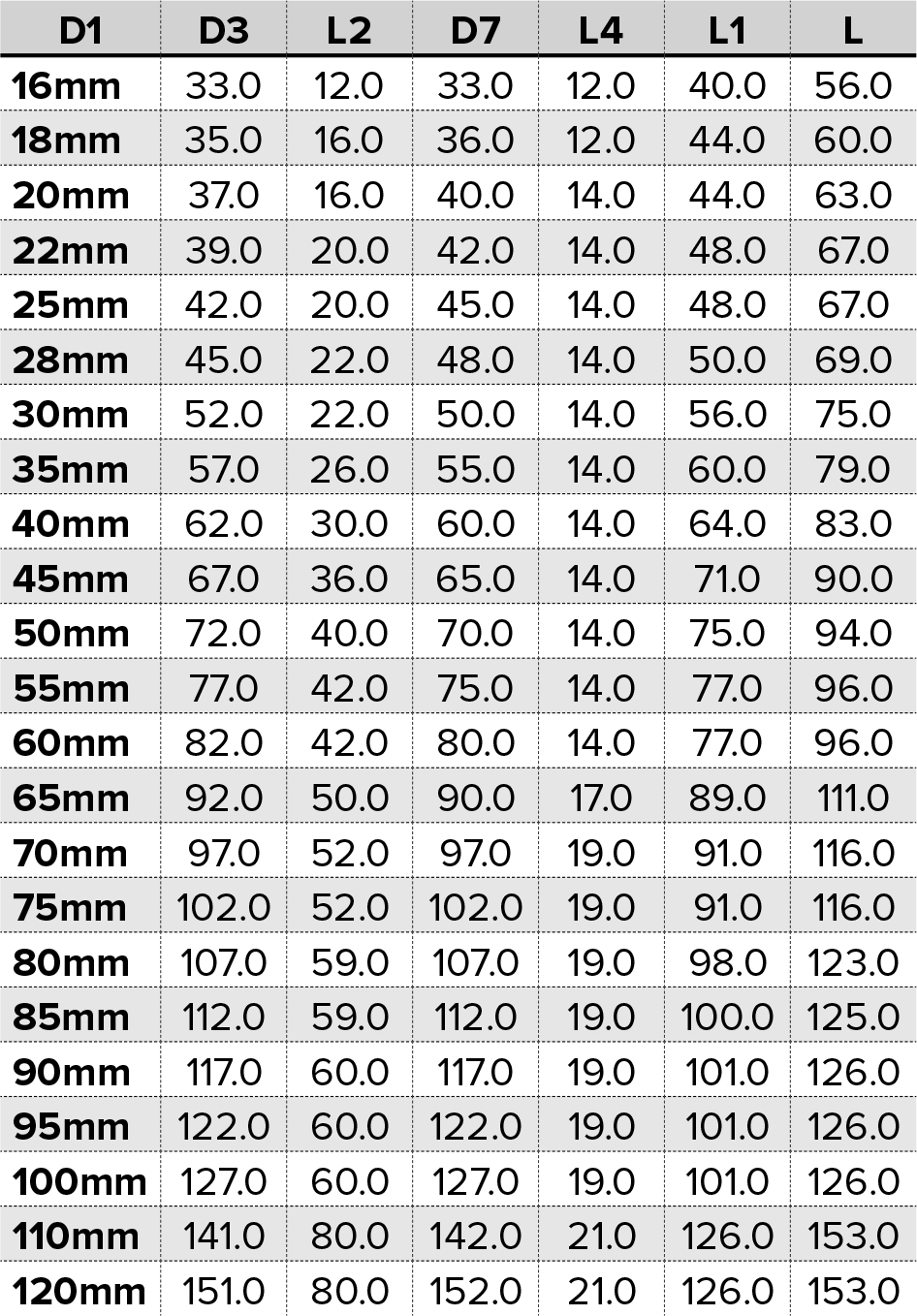

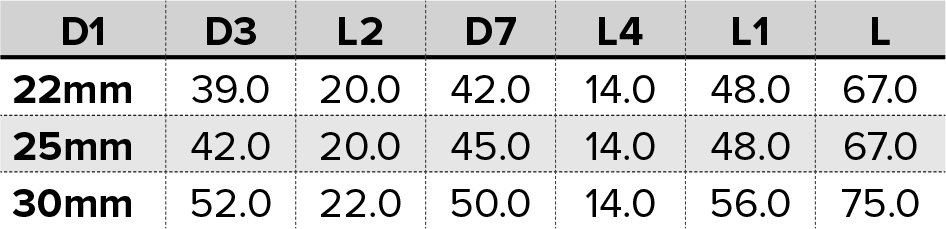

DIMENSIONS

Dimensions refer to installed length, not 'free' length:
