STATIONARIES & PARTS

EURO-O/R

METRIC EURO HOUSINGS - O-RING MOUNTED

PRODUCT INFORMATION

  • To Metric European Housings
  • O-ring Mounted

O-ring mounted stationaries are preferred for their versatility in elastomer selection, as well as higher operating limits in housings with higher manufacturing tolerances.



Suits European metric housing dimensions prior to the introduction of EN 12756 (formerly DIN 24960).

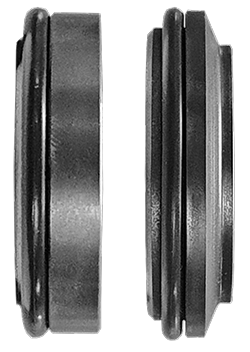

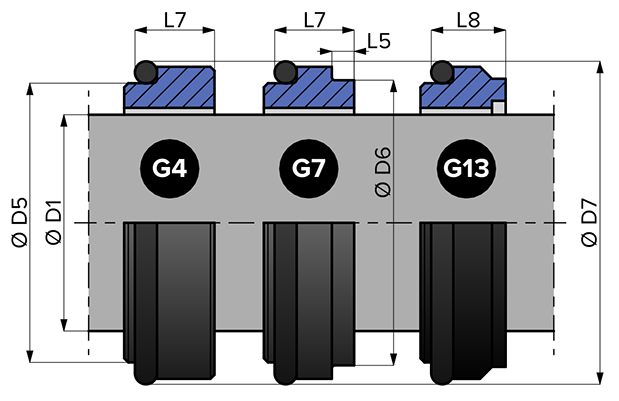

  • G4 Seat

For use with H32, H37 and HG1 seals

common in European markets.

  • G7 Seat

A modified G4 seat with a "bezelled"

face, for use with pumps using seat

retention plates.

  • G13 Seat

Carbon material with faces manufactured for use with H3 and H37 seals.

  • Material Availability

Seal Face:



Elastomer:

Silicon Carbide (SiC)

Carbon (CAB)*

Nitrile (N)

Viton (V)

EPDM (EP)

~Kalrez®, Teflex®, Aflas®

*G13 seat only

~special compounds available on request only

DATA SHEET

EURO-O/R - Data Sheet
