DIN-O/R

METRIC DIN HOUSINGS - O-RING MOUNTED

PRODUCT INFORMATION

  • To DIN EN 12756 Housings
  • O-ring Mounted

O-ring mounted stationaries are preferred for their versatility in elastomer selection, as well as higher operating limits in housings with higher manufacturing tolerances.

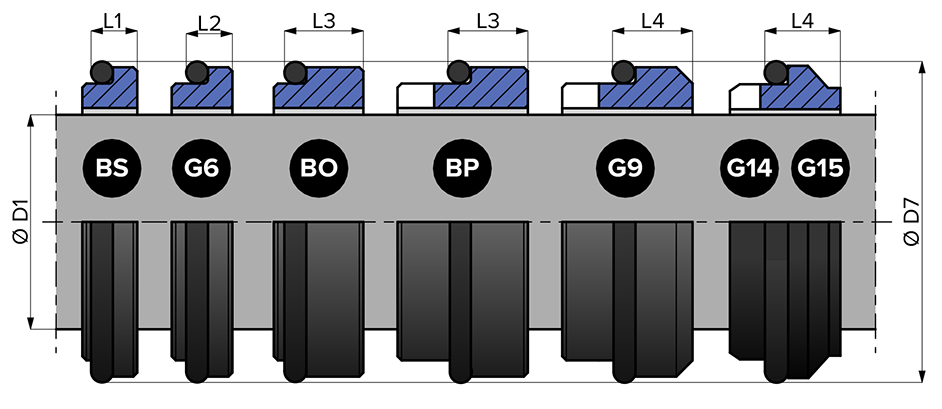

Suits housing dimensions according

to EN 12756 (formerly DIN 24960).

  • BS Seat

For use with HC1 and HC12 seals to

achieve DIN EN 12756 "L1s" and "L1k".

  • G6 Seat

For use with HG1, and with HG12 and

HG13 seals to achieve DIN EN 12756

"L1k" and "L1n".

  • BO Seat

For use with H502 seals to achieve

DIN EN 12756 "L1k".

  • BP Seat

For use with H58U and H58B seals to

achieve DIN EN 12756 "L1k". Additional

slot provision for a anti-rotation pin

  • G9 / G14 / G15 Seat

For use with H7U and H7B seals to

achieve DIN EN 12756 "L1k". Additional

slot provision for a anti-rotation pin.

  • Material Availability

Seal Face:





Elastomer:

Silicon Carbide (SiC)

Carbon (CAB)*

Ceramic (CER)^

Nitrile (N)

Viton (V)

EPDM (EP)

~Kalrez®, Teflex®, Aflas®

*G14 and G15 seats only

^BO seat only

~special compounds available on request only

DATA SHEET

DIN-O/R - Data Sheet

note: sizes >100mm are non-DIN EN 12756 sizes
