DIN-CUP

METRIC DIN HOUSINGS - CUP MOUNTED

PRODUCT INFORMATION

  • To DIN EN 12756 Housings
  • Cup / Boot Mounted

Cup- or "boot"-mounted stationaries are preferred for their superior sealing contact with the housing surface. The ribbed elastomer profile provides improved performance when press-fitted, creating a tight, friction-based anti-rotation fit that is well-suited for pumps with wider manufacturing tolerances.



Suits housing dimensions according to EN 12756 (formerly DIN 24960).

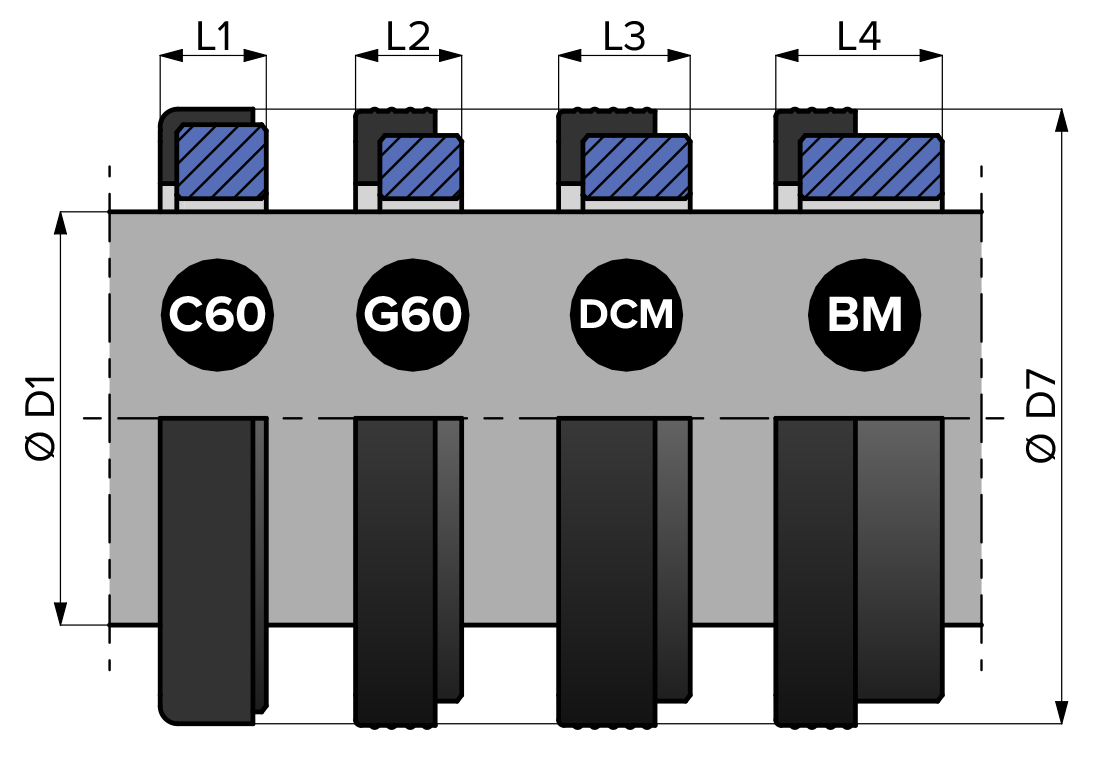

  • C60 Seat

For use with HC1 and HC12 seals to

achieve DIN EN 12756 "L1s" and "L1k".

  • G60 Seat

For use with HG1, and with HG12 and

HG13 seals to achieve DIN EN 12756

"L1k" and "L1n".

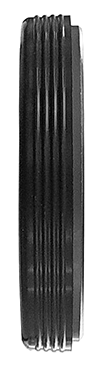

  • DCM Seat

For use with H21DIN seals to achieve

DIN EN 12756 "L1k".

  • BM Seat

For use with H502 seals to achieve

DIN EN 12756 "L1k".

  • Material Availability

Seal Face:





Elastomer:

Silicon Carbide (SiC)

Tungsten Carbide (TC)*

Ceramic (CER)^

Nitrile (N)

Viton (V)

EPDM (EP)

*G60 and DCM seats only

^DCM seat only

DATA SHEET

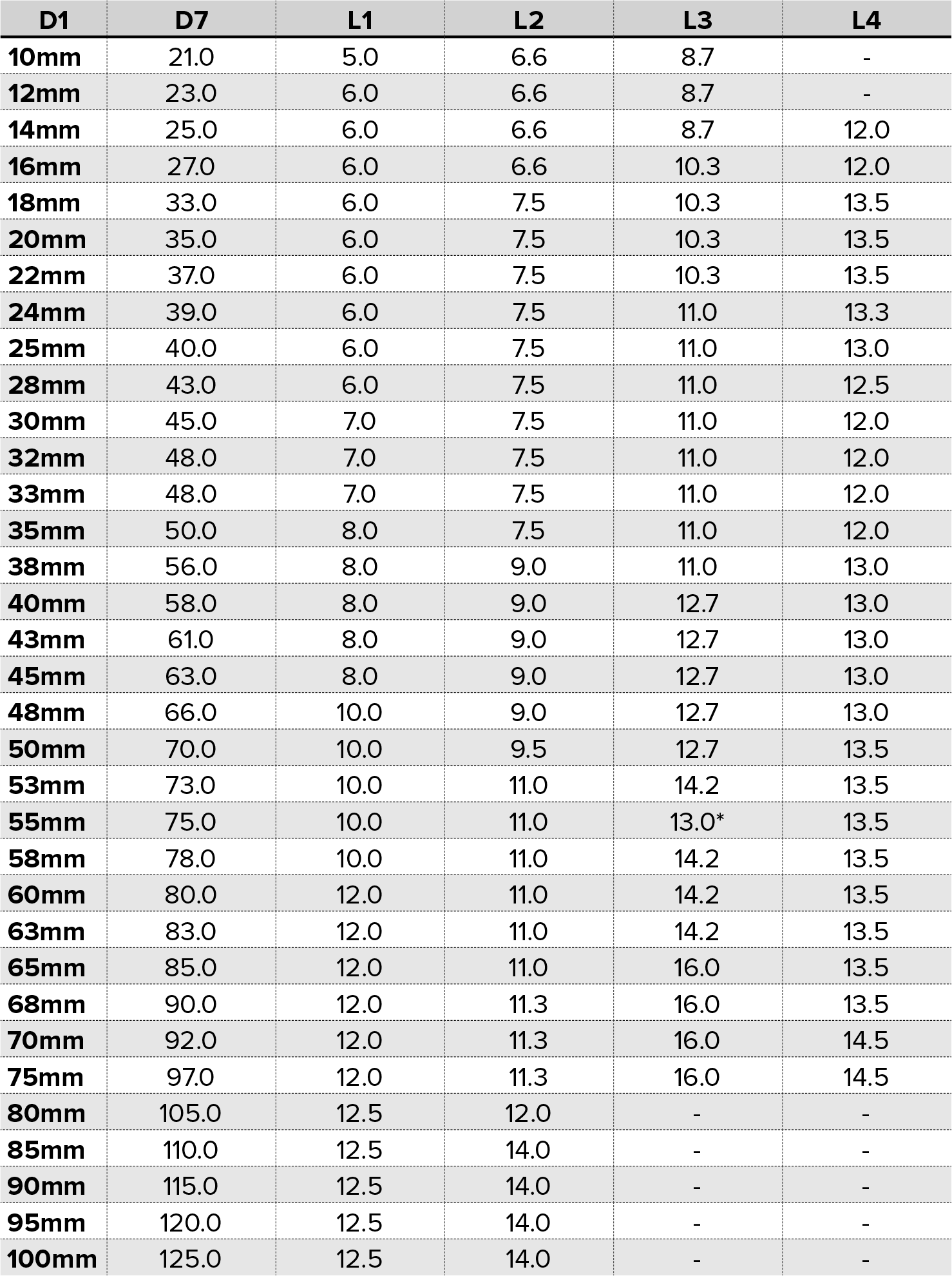

DIN-CUP - Data Sheet

*non-standard size
